Pressure Pipe With Boost Pressure Sensor

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

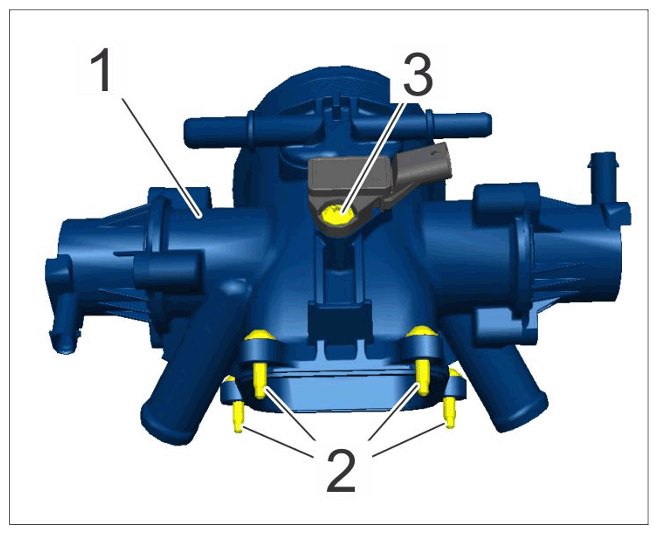

Fig 1: Pressure Pipe With Boost Pressure Sensor Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe with boost pressure sensor

1	Pressure pipe
2	Screws securing pressure pipe to charge-air cooler > Tightening torque 6 Nm (4.5 ftlb.) - 0.3 Nm (0.2 ftlb.) + 0.5 Nm (0.35 ftlb.)
3	Screw for boost pressure sensor > Tightening torque 3 Nm (2 ftlb.)
Not Shown	Screw-type clamp on rubber shroud for throttle valve > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Wastegate valve:

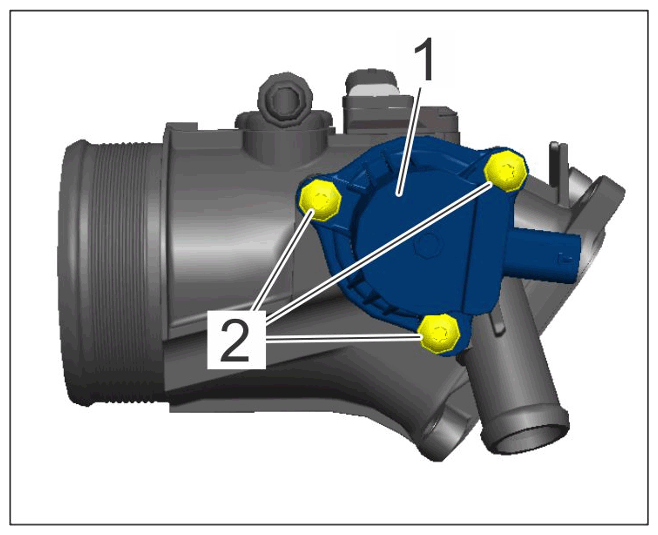

Fig 2: Wastegate Valves On Pressure Pipe Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wastegate valves on pressure pipe

1	Wastegate valve
2	Screws for wastegate valve > Tightening torque 3 Nm (2 ftlb.) + 0.2 Nm (0.1 ftlb.)

Fig 1: Pressure Pipe With Boost Pressure Sensor Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe with boost pressure sensor

1	Pressure pipe
2	Screws securing pressure pipe to charge-air cooler > Tightening torque 6 Nm (4.5 ftlb.) - 0.3 Nm (0.2 ftlb.) + 0.5 Nm (0.35 ftlb.)
3	Screw for boost pressure sensor > Tightening torque 3 Nm (2 ftlb.)

not shown

Screw-type clamp on rubber shroud for throttle valve > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Wastegate valve:

Fig 2: Wastegate Valves On Pressure Pipe Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wastegate valves on pressure pipe

1	Wastegate valve
2	Screws for wastegate valve > Tightening torque 3 Nm (2 ftlb.) + 0.2 Nm (0.1 ftlb.)
