Mounting Point For Charge-Air Cooler

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

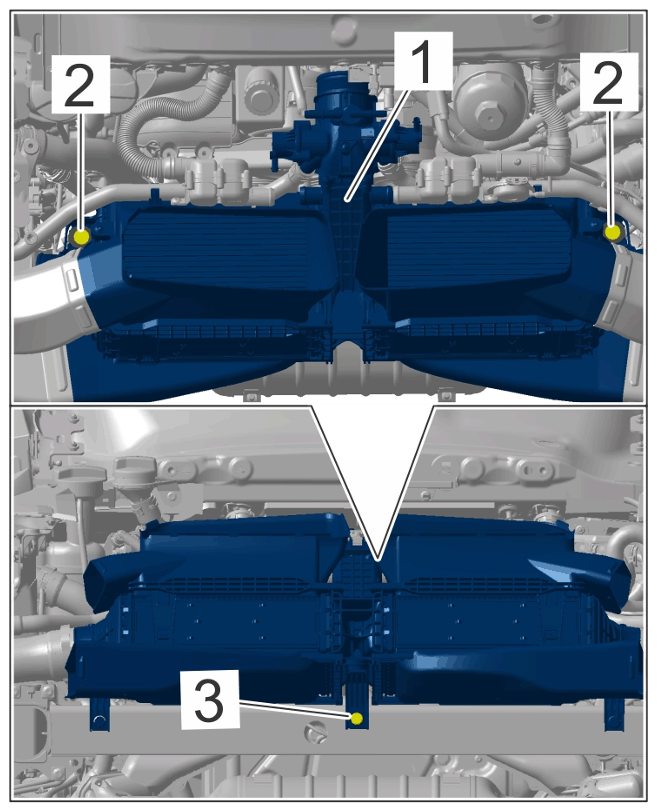

Fig 1: Charge-Air Cooler Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooler

1	Charge-air cooler module
2	Screw, M6 x 35 -2- > Tightening torque 10 Nm (7.5 ftlb.)
3	Support sleeve
