Technical Values - Starter, Power Supply, Cruise Control: Battery

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Battery filler plug		Tightening torque	1.2 Nm (0.9 ftlb.)

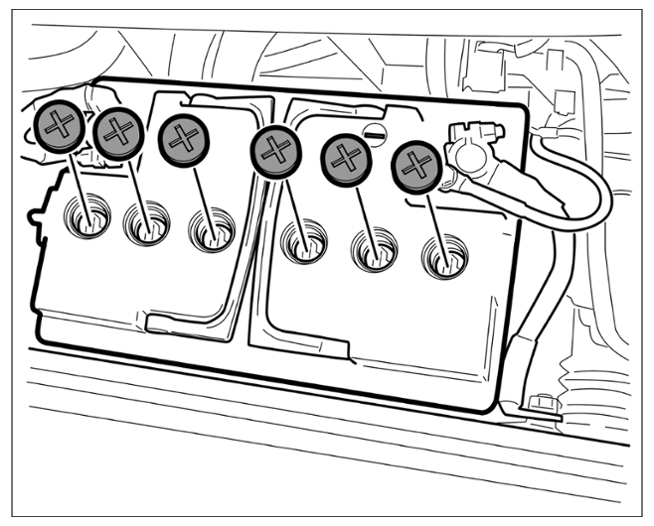

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing battery plugs
Retaining bar on cowl panel frame or battery console	Collar nut, M8	Tightening torque	23 Nm (17 ftlb.)
Terminal clamp to battery terminal	M6 nut	Tightening torque	6 Nm (4.5 ftlb.)
Battery ground line to cowl panel frame	Collar nut, M8	Tightening torque	15 Nm (11 ftlb.)
Rail to battery console	Hexagon-head bolt, M8	Tightening torque	23 Nm (17 ftlb.)
Battery console to holder	Hexagon-head bolt, M8	Tightening torque	23 Nm (17 ftlb.)
Battery console holder to body	Hexagon-head bolt, M8	Tightening torque	23 Nm (17 ftlb.)

Location	Description	Type	Basic value
Battery filler plug		Tightening torque	1.2 Nm (0.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing battery plugs
Retaining bar on cowl panel frame or battery console	Collar nut, M8	Tightening torque	23 Nm (17 ftlb.)
Terminal clamp to battery terminal	M6 nut	Tightening torque	6 Nm (4.5 ftlb.)
Battery ground line to cowl panel frame	Collar nut, M8	Tightening torque	15 Nm (11 ftlb.)
Rail to battery console	Hexagon-head bolt, M8	Tightening torque	23 Nm (17 ftlb.)
Battery console to holder	Hexagon-head bolt, M8	Tightening torque	23 Nm (17 ftlb.)
Battery console holder to body	Hexagon-head bolt, M8	Tightening torque	23 Nm (17 ftlb.)
