Vacuum Supply, Valve Block

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Valve block vacuum supply:

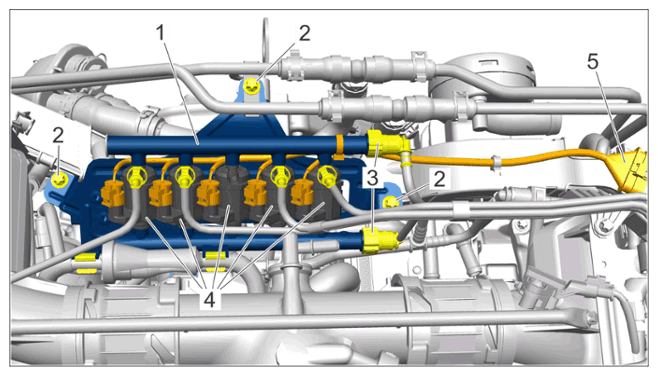

Fig 1: Vacuum Lines, Valve Block Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum lines, valve block

1	Valve block
2	Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
3	Connection for plug-in couplings for vacuum line
4	Control valves
5	Cable plugs for electrical system

Valve block vacuum supply:

Fig 1: Vacuum Lines, Valve Block Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum lines, valve block

1	Valve block
2	Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
3	Connection for plug-in couplings for vacuum line
4	Control valves
5	Cable plugs for electrical system
