Raw-Air Intake

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Screws securing air guide to rear side section	Item 2	Tightening torque	1.5 Nm (1 ftlb.)

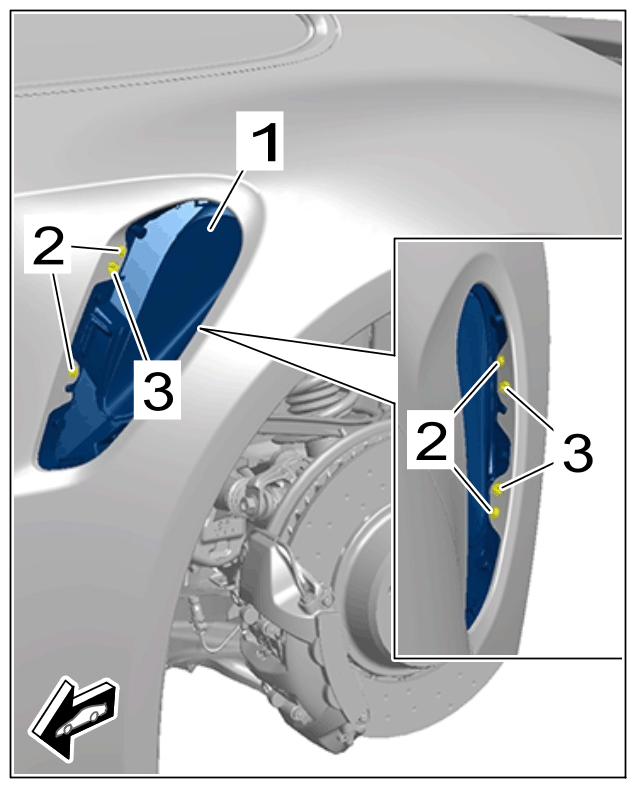

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on air guide
Screws securing air guide to outer wheel housing	Item 2 to 5	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air guide
Screw securing raw-air intake to air cleaner housing	Item 2	Tightening torque	6 Nm (4.5 ftlb.)

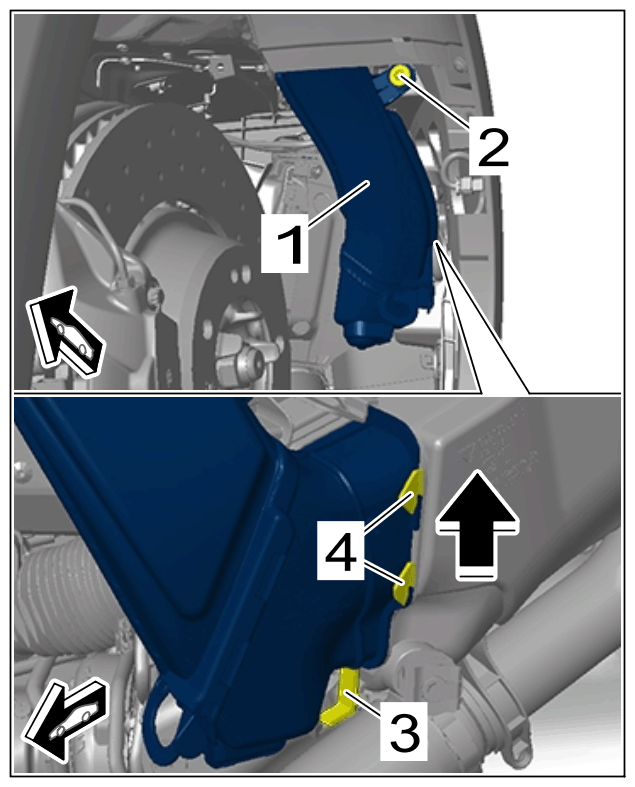

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Raw-air intake
