Intake-Air Distributor: Notes
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

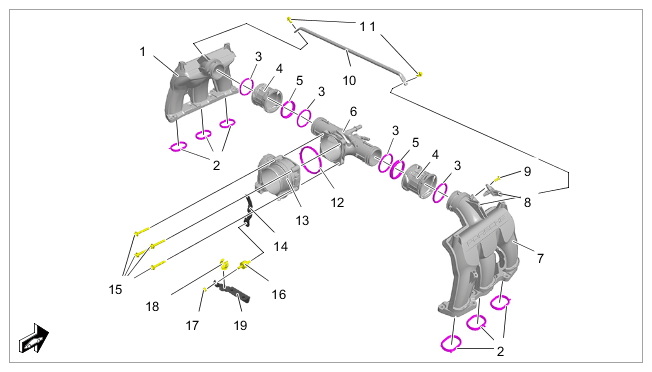

Component overview of intake-air distributor
| 1 | Intake-air distributor, bank 1-3 > Tightening torque 13 Nm (9.5 ftlb.) |
| 2 | Sealing ring for intake duct - grease lightly |
| 3 | Sealing ring for bayonet ring, outer and on center part - grease lightly |
| 4 | Bayonet ring |
| 5 | Sealing ring for bayonet ring, inner - grease lightly |
| 6 | Centre intake-air distributor |
| 7 | Intake-air distributor, bank 4-6 > Tightening torque 13 Nm (9.5 ftlb.) |
| 8 | Pressure sensor |
| 9 | Screw for intake pipe pressure sensor > Tightening torque 5 Nm (3.5 ftlb.) |
| 10 | Strut for intake-air distributor |
| 11 | M6 screw to holder between intake-air distributors > Tightening torque 13 Nm (9.5 ftlb.) |
| 12 | Sealing ring for throttle housing - grease lightly |
| 13 | Throttle housing |
| 14 | Throttle housing holder |
| 15 | M6 screws for throttle housing > Tightening torque 10 Nm (7.5 ftlb.) |
| 16 | Silent block |
| 17 | M6 collar nut > Tightening torque 6 Nm (4.5 ftlb.) |
| 18 | Clip |
| 19 | Holder |
