Component Overview

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

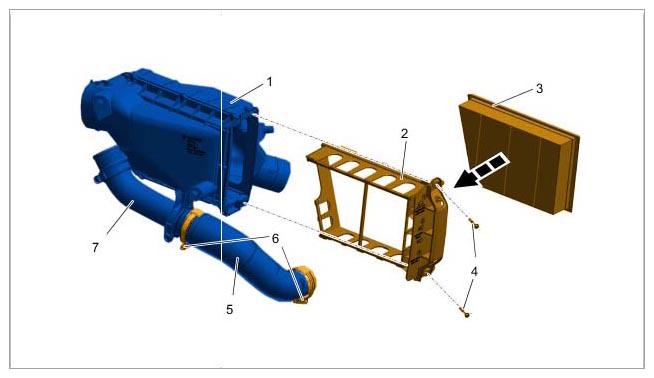

Fig 1: Air Cleaner Housing Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cleaner housing

1	Air cleaner housing
2	Frame for air-cleaner element
3	Air-cleaner element
4	Tapping screw > Tightening torque 2.2 Nm (1.6 ftlb.) + 0.5 Nm (0.3 ftlb.)
5	Molded hose on pressure side
6	Screw-type clamps > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
7	Pressure pipe
