Fuel Tank, Side Mounting

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

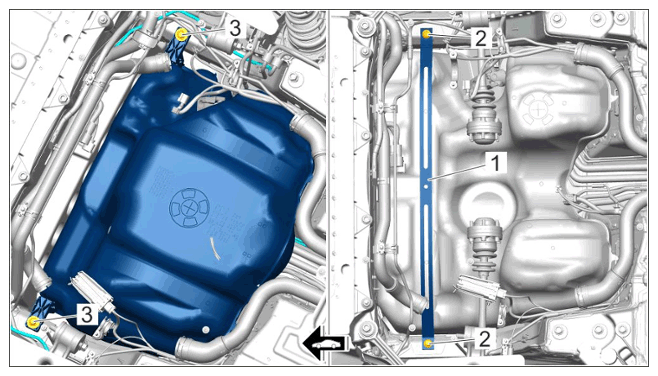

Fig 1: Fuel Tank Screws At Sides Components Location With Torque Specification - C2/C4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank screws at the sides - C2/C4

1	Restraining strap for fuel tank, front - Carrera 4
2	Screws, M8 > Tightening torque 23 Nm (17 ftlb.)
3	Screws for fuel tank - Carrera 2 > Tightening torque 23 Nm (17 ftlb.)

Fig 1: Fuel Tank Screws At Sides Components Location With Torque Specification - C2/C4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank screws at the sides - C2/C4

1	Restraining strap for fuel tank, front - Carrera 4
2	Screws, M8 > Tightening torque 23 Nm (17 ftlb.)
3	Screws for fuel tank - Carrera 2 > Tightening torque 23 Nm (17 ftlb.)
