Fuel Tank, Securing With Restraining Straps Lengthways

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

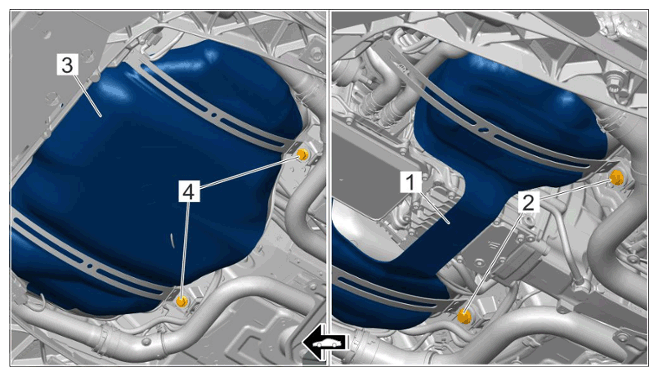

Fig 1: Fuel Tank On C2/C4 With Restraining Straps Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank on C2/C4 with restraining straps

1	Protective cover on fuel tank, all-wheel drive
2	Screws for restraining straps > Tightening torque 23 Nm (17 ftlb.)
3	Protective cover - C2
4	Screws for restraining straps > Tightening torque 23 Nm (17 ftlb.)

Filler neck to body > Tightening torque 10 Nm (7.5 ftlb.)

Control unit for fuel pump to battery console > Tightening torque 2.5 Nm (1.75 ftlb.)
