Carbon Canister

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Carbon canister (RoW):

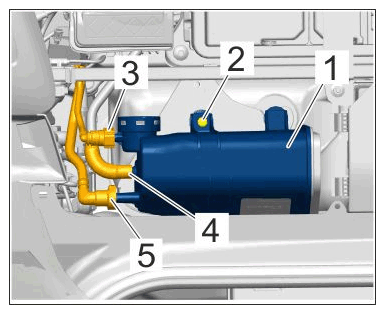

Fig 1: Carbon Canister Components Location With Torque Specification - Row

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister - RoW

1	Carbon canister - RoW
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Vent line connection
4	Air line connection
5	Fuel line connection

Carbon canister with leakage diagnosis module (ORVR):

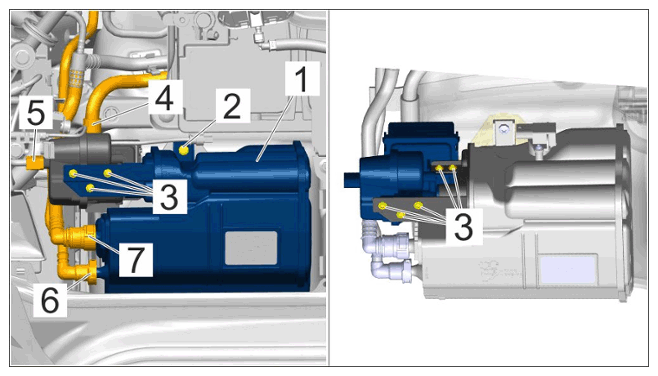

Fig 2: Carbon Canister With Leakage Diagnosis Module Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister with leakage diagnosis module

1	Carbon canister with leakage diagnosis module
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Tapping screws -3- > Tightening torque 2.4 Nm (1.75 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
4	Air line connection
5	Electric plug connection on leakage diagnosis module
6	Fuel line connection
7	Vent line connection

Carbon canister (RoW):

Fig 1: Carbon Canister Components Location With Torque Specification - Row

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister - RoW

1	Carbon canister - RoW
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Vent line connection
4	Air line connection
5	Fuel line connection

Carbon canister with leakage diagnosis module (ORVR):

Fig 2: Carbon Canister With Leakage Diagnosis Module Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister with leakage diagnosis module

1	Carbon canister with leakage diagnosis module
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Tapping screws -3- > Tightening torque 2.4 Nm (1.75 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
4	Air line connection
5	Electric plug connection on leakage diagnosis module
6	Fuel line connection
7	Vent line connection
