Tailpipe Trim

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Component overview:

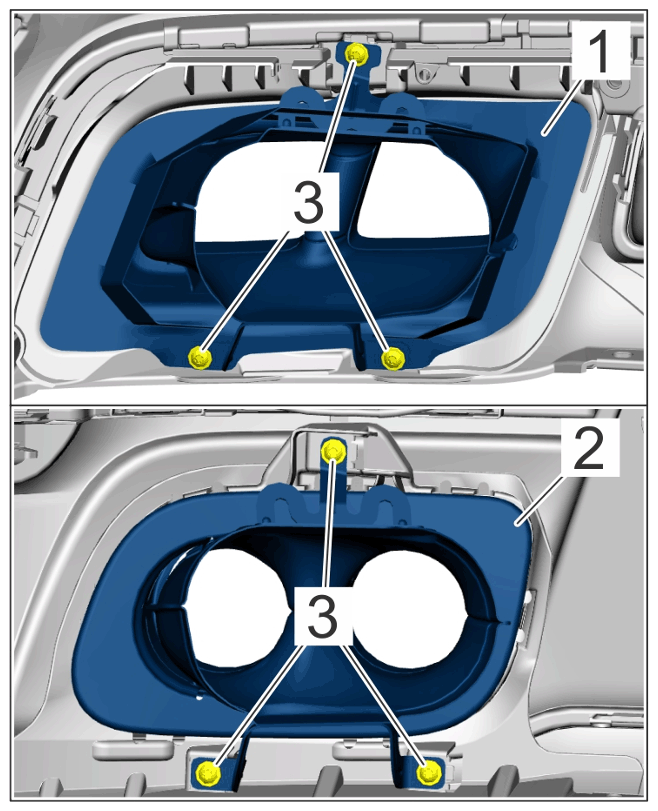

Fig 1: Tailpipe Trim (Rear End) Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailpipe trim (secured to rear end)

1	Turbo tailpipe trim
2	Basic tailpipe trim
3	Screw on tailpipe trim, M6 x 16 > Tightening torque 8 Nm (5.9 ftlb.)

Component overview:

Fig 1: Tailpipe Trim (Rear End) Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailpipe trim (secured to rear end)

1	Turbo tailpipe trim
2	Basic tailpipe trim
3	Screw on tailpipe trim, M6 x 16 > Tightening torque 8 Nm (5.9 ftlb.)
