Installation Overview

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

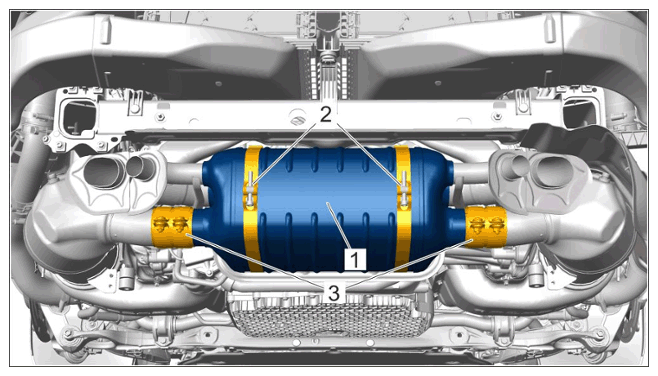

Fig 1: Rear Silencer Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of installation position of rear silencer

1	Rear silencer
2	Cheese head bolt, M8 x 50 > Tightening torque 15 Nm (11 ftlb.) +/- 10 %
3	Clamp - replace > Tightening torque 30 Nm (22 ftlb.) +/- 10 %

Fig 1: Rear Silencer Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of installation position of rear silencer

1	Rear silencer
2	Cheese head bolt, M8 x 50 > Tightening torque 15 Nm (11 ftlb.) +/- 10 %
3	Clamp - replace > Tightening torque 30 Nm (22 ftlb.) +/- 10 %
