Rear Muffler Bracket With Heat Shield

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Assembly overview of rear muffler bracket with heat shield on belt drive:

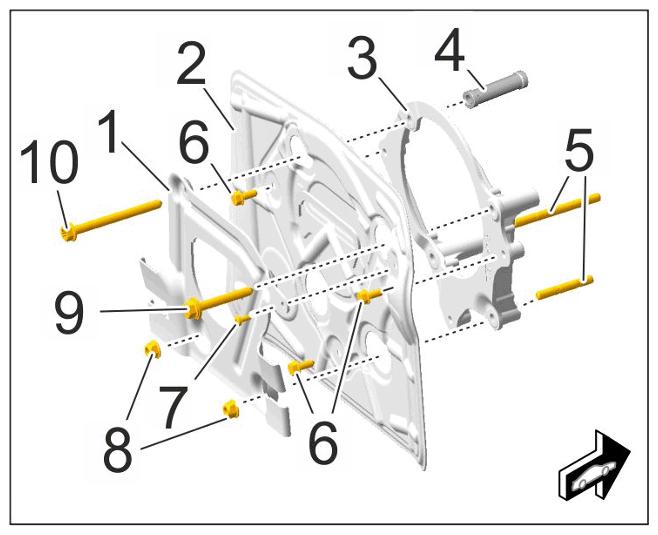

Fig 1: Rear Muffler Bracket With Heat Shield Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear muffler bracket with heat shield

1	Rear muffler bracket
2	Heat shield
3	Support
4	Spacer sleeve
5	Threaded bolt M10 - Projection at bottom left: 88 + 1 mm; Projection at bottom right: 48 + 1 mm > Tightening torque 5 Nm (3.7 ftlb.)
6	Screw for heat shield > Tightening torque 23 Nm (17 ftlb.)
7	Screw M6 x 14 > Tightening torque 10 Nm (7.4 ftlb.)
8	Collar nut M10 > Tightening torque 65 Nm (47.9 ftlb.)
9	Screw M10 x 75 > Tightening torque 65 Nm (47.9 ftlb.)
10	Screw M10 x 115 > Tightening torque 65 Nm (47.9 ftlb.) Different value with socket-wrench insert 9953: > Tightening torque 53 Nm (39.1 ftlb.)

Assembly overview of rear muffler bracket with heat shield on belt drive:

Fig 1: Rear Muffler Bracket With Heat Shield Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear muffler bracket with heat shield

1	Rear muffler bracket
2	Heat shield
3	Support
4	Spacer sleeve
5	Threaded bolt M10 - Projection at bottom left: 88 + 1 mm; Projection at bottom right: 48 + 1 mm > Tightening torque 5 Nm (3.7 ftlb.)
6	Screw for heat shield > Tightening torque 23 Nm (17 ftlb.)
7	Screw M6 x 14 > Tightening torque 10 Nm (7.4 ftlb.)
8	Collar nut M10 > Tightening torque 65 Nm (47.9 ftlb.)
9	Screw M10 x 75 > Tightening torque 65 Nm (47.9 ftlb.)
10	Screw M10 x 115 > Tightening torque 65 Nm (47.9 ftlb.) Different value with socket-wrench insert 9953: > Tightening torque 53 Nm (39.1 ftlb.)
