Heat Protection

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Cover plate on exhaust manifold: Screws from the top:

Fig 1: Screws For Cover Plate In Rear Wheel Housing Components Location With Torque Specification
G15508630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for cover plate in rear wheel housing

1 Cover plate at the left/right
2 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)

Screws from the bottom:

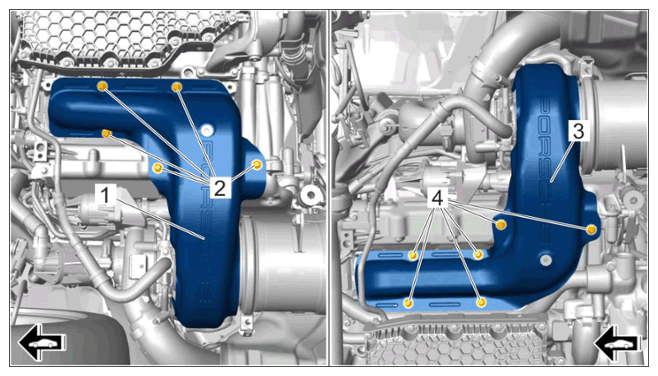

Fig 2: Screws Securing Cover Plate To Exhaust Manifold Components Location With Torque Specification - Bottom
G15508631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing cover plate to exhaust manifold, bottom

1 Cover plate, bank 4-6
2 Screws, M6 - bank 4-6 > Tightening torque 10 Nm (7.5 ftlb.)
3 Cover plate, bank 1-3
4 Screws, M6 - bank 1-3 > Tightening torque 10 Nm (7.5 ftlb.)

Heat shield on catalytic converter:

Fig 3: Heat Shield On Particle Filter Components Location With Torque Specification
G15508632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on particle filter

1 Heat shield
2 Screws for heat shield > Tightening torque 10 Nm (7.5 ftlb.)
3 Catalytic converter with particle filter

Heat shield on cylinder head cover:

Fig 4: Heat Shield On Cylinder Head Cover Components Location With Torque Specification
G15508633Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on cylinder head cover

1 Left heat shield
2 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)
3 Right heat shield
4 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)

Heat shield for turbocharger/catalytic converter:

Fig 5: Heat Shield For Turbocharger/Catalytic Converter On Cylinder Head Components Location With Torque Specification
G15508634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for turbocharger/catalytic converter on cylinder head

1 Heat shield for turbocharger/catalytic converter
2 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)

Heat shield on rear bracket:

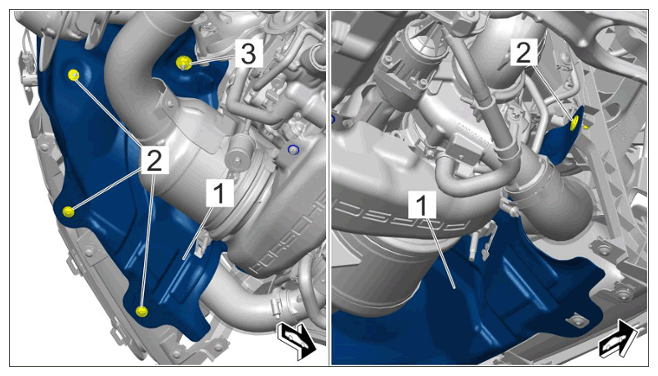

Fig 6: Heat Shield On Rear Bracket Components Location With Torque Specification
G15508635Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on rear bracket

1 Heat shield on rear bracket
2 Tapping screw > Tightening torque 2.5 Nm (1.75 ftlb.)
3 Speed nut > Tightening torque 2.5 Nm (1.75 ftlb.)


Cover plate on exhaust manifold: Screws from the top:

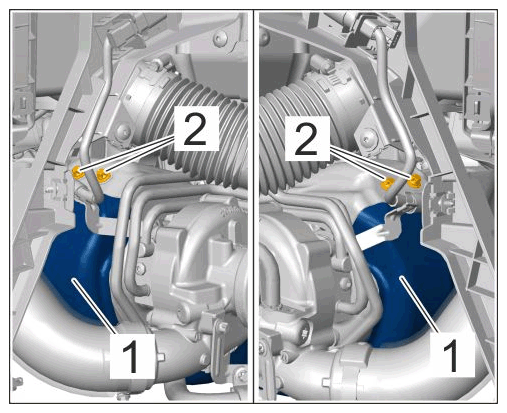

Fig 1: Screws For Cover Plate In Rear Wheel Housing Components Location With Torque Specification
G15508685Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for cover plate in rear wheel housing

1 Cover plate at the left/right
2 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)

Screws from the bottom:

Fig 2: Screws Securing Cover Plate To Exhaust Manifold Components Location With Torque Specification - Bottom
G15508686Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing cover plate to exhaust manifold, bottom

1 Cover plate, bank 4-6
2 Screws, M6 - bank 4-6 > Tightening torque 10 Nm (7.5 ftlb.)
3 Cover plate, bank 1-3
4 Screws, M6 - bank 1-3 > Tightening torque 10 Nm (7.5 ftlb.)

Heat shield on catalytic converter:

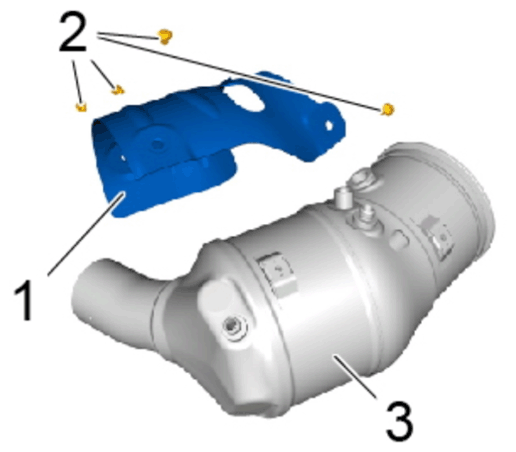

Fig 3: Heat Shield On Particle Filter Components Location With Torque Specification
G15508687Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on particle filter

1 Heat shield
2 Screws for heat shield > Tightening torque 10 Nm (7.5 ftlb.)
3 Catalytic converter with particle filter

Heat shield on cylinder head cover:

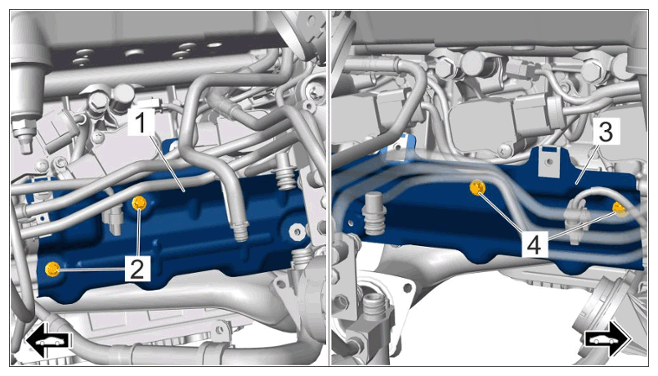

Fig 4: Heat Shield On Cylinder Head Cover Components Location With Torque Specification
G15508688Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on cylinder head cover

1 Left heat shield
2 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)
3 Right heat shield
4 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)

Heat shield for turbocharger/catalytic converter:

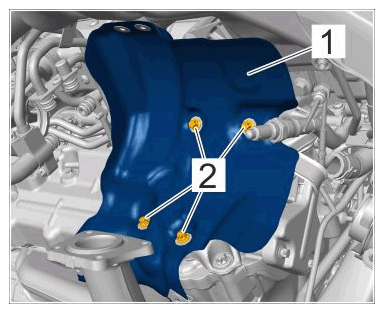

Fig 5: Heat Shield For Turbocharger/Catalytic Converter On Cylinder Head Components Location With Torque Specification
G15508689Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for turbocharger/catalytic converter on cylinder head

1 Heat shield for turbocharger/catalytic converter
2 Screws, M6 > Tightening torque 10 Nm (7.5 ftlb.)

Heat shield on rear bracket:

Fig 6: Heat Shield On Rear Bracket Components Location With Torque Specification
G15508690Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on rear bracket

1 Heat shield on rear bracket
2 Tapping screw > Tightening torque 2.5 Nm (1.75 ftlb.)
3 Speed nut > Tightening torque 2.5 Nm (1.75 ftlb.)
