Removing Accelerator Pedal
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

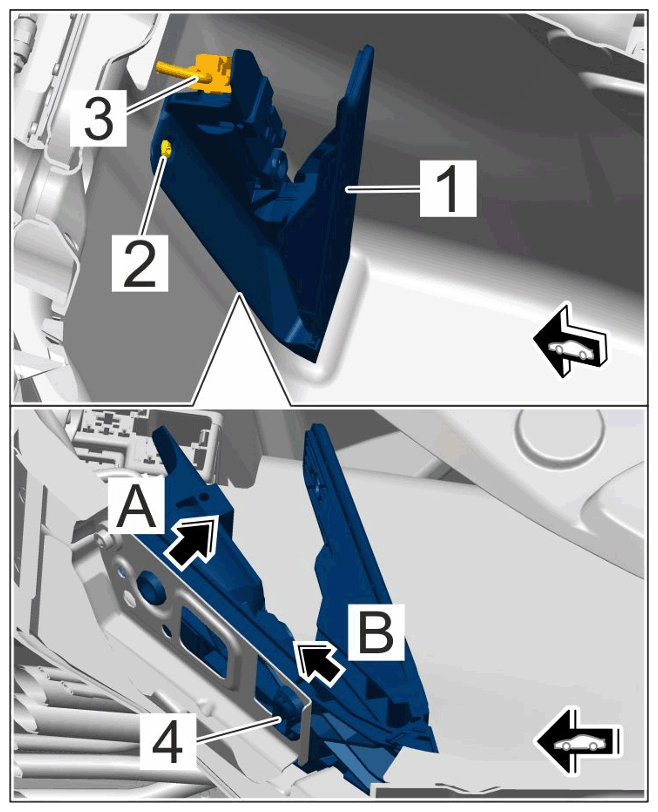

- Remove accelerator pedal -1-
.
- 1.1 Unscrew screw -2-
.
- 1.2 Release and unplug electric plug connection -3-
.
- 1.3 Lift the accelerator pedal slightly at the front -arrow A-
and push it up -arrow B-
so that the hook -4-
is guided out of the bracket.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Accelerator pedal
