Installing Accelerator Pedal
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

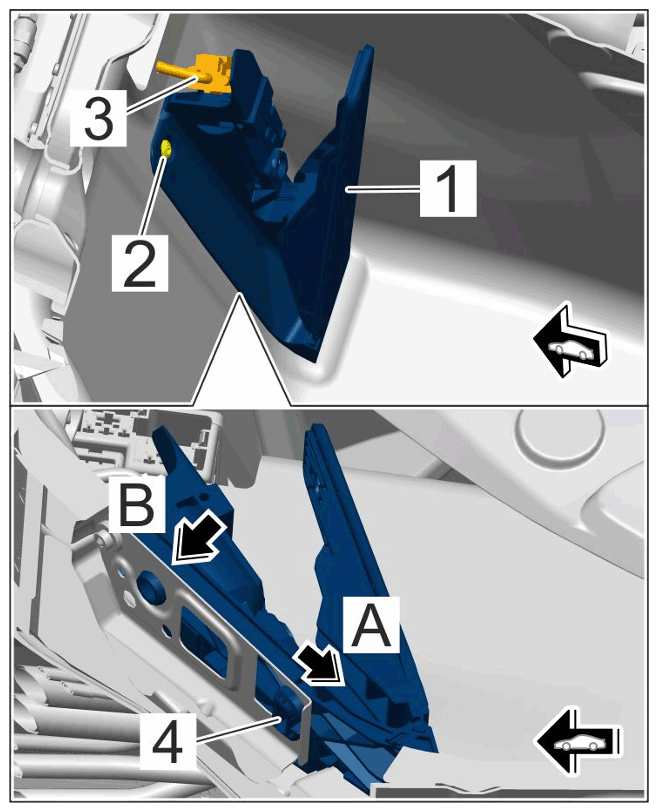

- Install accelerator pedal -1-
.
- 1.1 Guide accelerator pedal with hook -4-
into the bracket -arrow A-
and press into the shaped hole -arrow B-
.
- 1.2 Connect and lock electric plug connection -3-
.
- 1.3 Tighten screw -2-
. > Tightening torque 6 Nm (4.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Accelerator pedal
