Removing Control Unit For Fuel Pump

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure not to damage the electric lines.

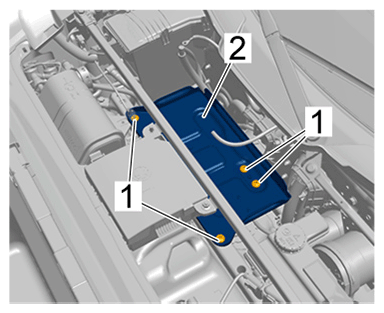

Unscrew fastening screws -1- on the battery console -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Carefully lift the battery console -2- and turn it around until the electric plug connection for the fuel pump control unit is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery console

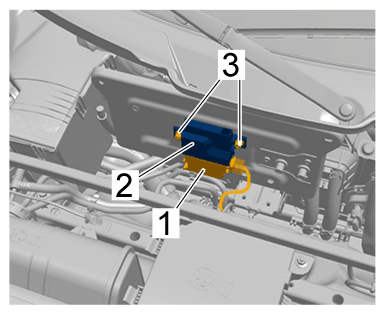

Release and disconnect electric plug connection -1- on control unit for fuel pump -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump control unit
Unscrew fastening nuts -3- and remove control unit for fuel pump -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
