Installing Control Unit For Fuel Pump

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order. Pay particular attention to the following:

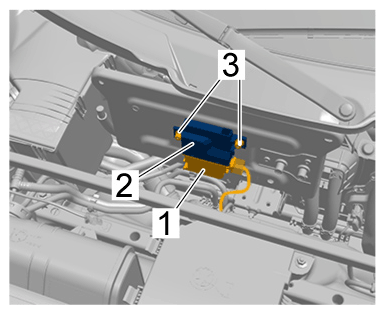

Tighten fastening nuts -3- on fuel pump control unit -2- to > Tightening torque 2.5 Nm (1.75 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump control unit

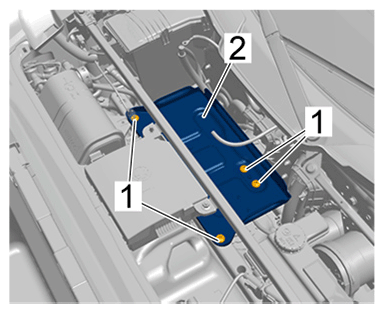

Tighten fastening screws -1- on battery console -2- to > Tightening torque 23 Nm (17 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery console
