Removing Fuel Pump
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Remove fuel pump -1-
.
- 1.1 Turn the fuel pump -1-
anti-clockwise -arrow A-
out of the latch (bayonet lock) -2-
.
- 1.2 Carefully remove the fuel pump -1-
from the fuel tank by pulling it up through the opening on the tank -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

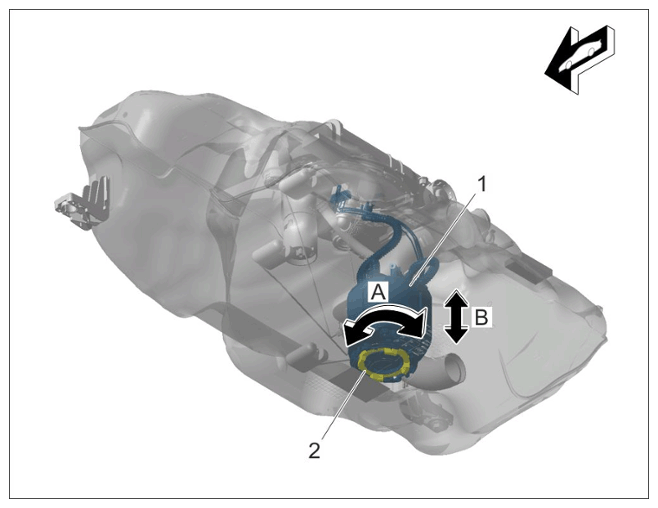

Fuel pump in fuel tank
