Installing Fuel Pump

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install fuel pump -1-  .
    1. 1.1 Carefully guide the fuel pump -1-  down into the fuel tank via the opening on the tank -arrow B-  .
    2. 1.2 Position the fuel pump -1-  carefully into the latch (bayonet lock) -2-  in the fuel tank -arrow B-  .
    3. 1.3 Lock the fuel pump -1-  by turning it clockwise -arrow A-  .

      The installation position must always be observed.

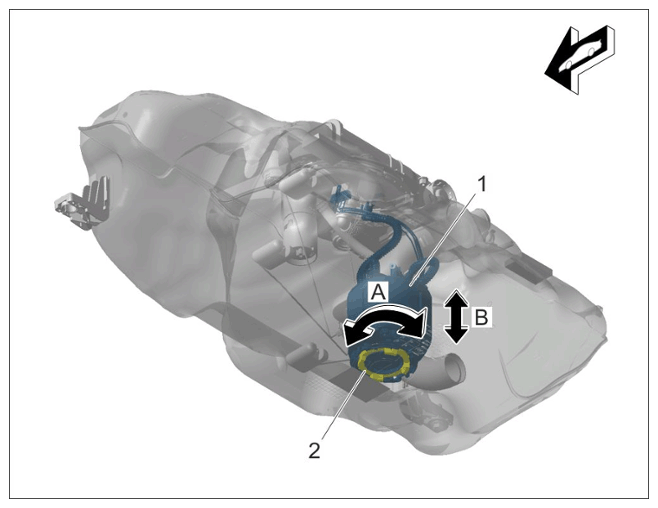

G15508178Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump in fuel tank

Subsequent work

  1. Install fuel level sensor.

    201519 REMOVING AND INSTALLING FUEL LEVEL SENDER

  2. Fill fuel that was removed back into the fuel tank.

    200317 DRAINING AND FILLING FUEL
