Installing Leakage Diagnosis Module

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

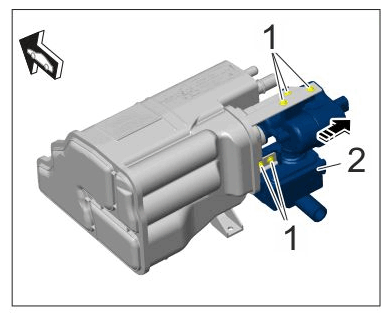

  1. Position leakage diagnosis module -2-  on the carbon canister and secure with screws -1-  .

    > Tightening torque 2.4 Nm (1.75 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

G15508160Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Leakage diagnosis unit
