Removing Supply Line

1. Loosen supply line -1-  on cylinder bank 2.
   1. 1.1 Release and disconnect quick connector -2-  on supply line -1-  at the high-pressure pump for cylinder bank 2.
   2. 1.2 Catch escaping fuel and close off line connections using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

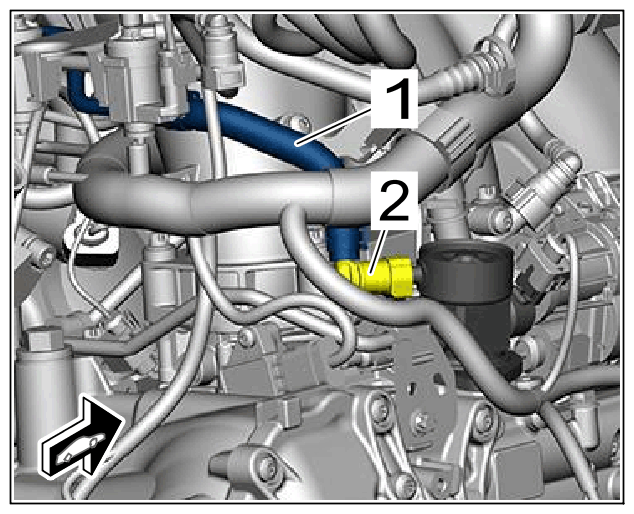

   Supply line on cylinder bank 2.

2. Remove supply line -1-  .
   1. 2.1 Release and disconnect quick connector -2-  on supply line -1-  at the high-pressure pump for cylinder bank 1.
   2. 2.2 Catch escaping fuel and close off line connections using suitable stoppers.
   3. 2.3 Release and disconnect electric plug connection for fuel low-pressure sensor -3-  .
   4. 2.4 Unclip clips -4-  for the electric line from the supply line -1-  and set electric line aside.
   5. 2.5 Unscrew screw on fuel low-pressure sensor holder -5-  .
   6. 2.6 Unclip supply line -1-  from the line bracket for the oil filling tower -6-  and guide it towards cylinder bank 1 and out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

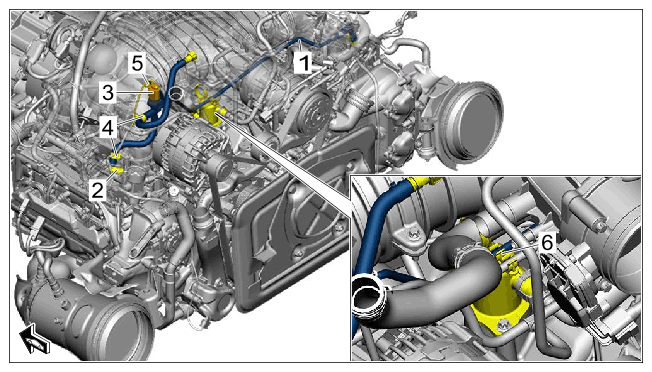

Supply line
