Installing Supply Line

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install supply line -1- .
1. 1.1 Move supply line -1- from cylinder bank 1 towards cylinder bank 2 and into installation position, then clip it into the line bracket for the oil filling tower -6- .
2. 1.2 Screw in and tighten screw on fuel low-pressure sensor holder -5- .
  > Tightening torque 12 Nm (8.9 ftlb.)
3. 1.3 Connect and lock electric plug connection for fuel low-pressure sensor -3- .
4. 1.4 Clip in clips -4- for electric line into supply line -1- .
5. 1.5 Place and lock quick connector for the supply line -1- to the high-pressure pump on cylinder bank 1.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

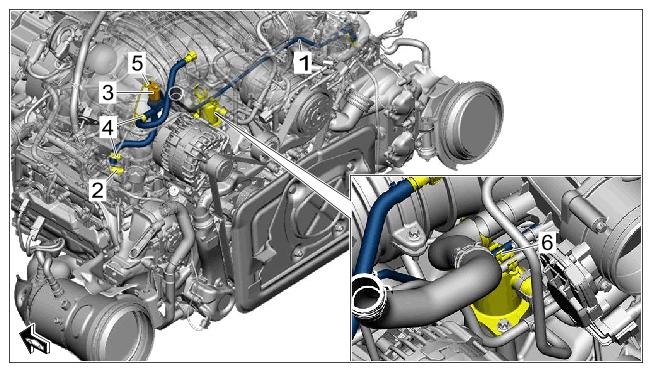

Supply line
Fasten supply line -1- to cylinder bank 2.
1. 2.1 Place and lock quick connector -2- for the supply line -1- to the high-pressure pump on cylinder bank 2.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

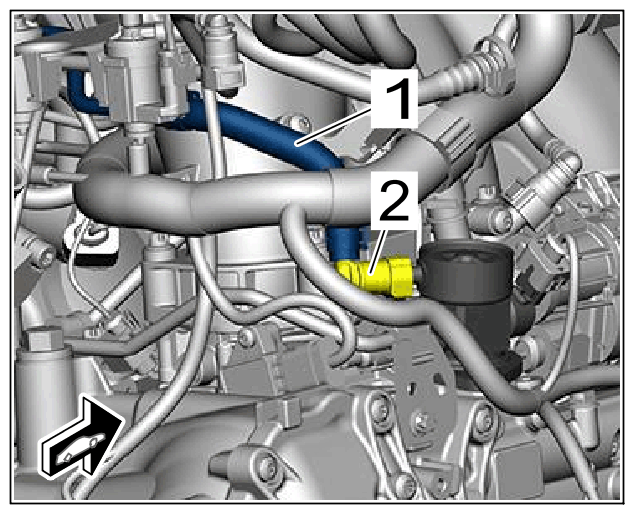

Supply line on cylinder bank 2.
