Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Retaining bracket to body | M8 x 25 | Tightening torque | 20 Nm (15 ftlb.) | ||
| Restraining strap to body (all-wheel drive) | Screws, M8 x 35 | Tightening torque | 23 Nm (17 ftlb.) | ||
| Restraining strap to body | Screw, M8 x 35 | Tightening torque | 23 Nm (17 ftlb.) | ||

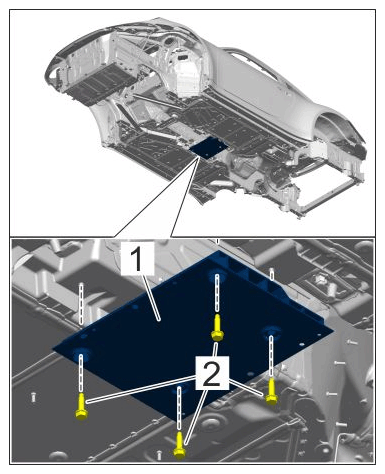

| Rear tunnel reinforcement to floorpan | Item 2 | Tightening torque | 40 Nm (30 ftlb.) | ||
|
Crash reinforcement in rear tunnel |
|||||
