Removing Fuel Supply Line (Rear Section)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

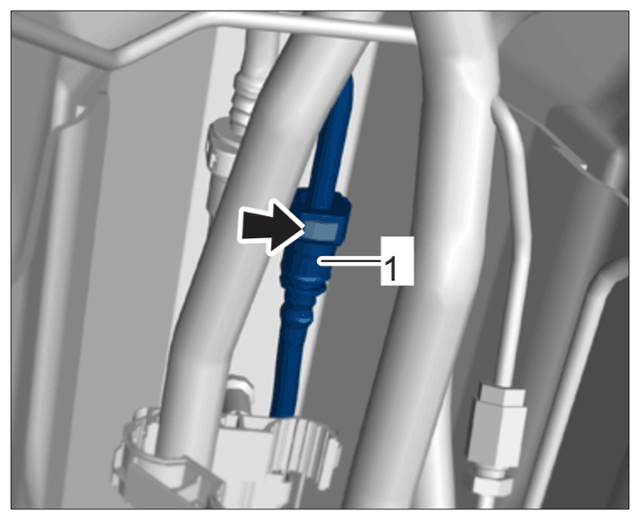

Open plug connection -1- on the fuel line in the tunnel.
1. 1.1 Press locking mechanism -arrow- and disconnect the line.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for fuel supply line in the tunnel

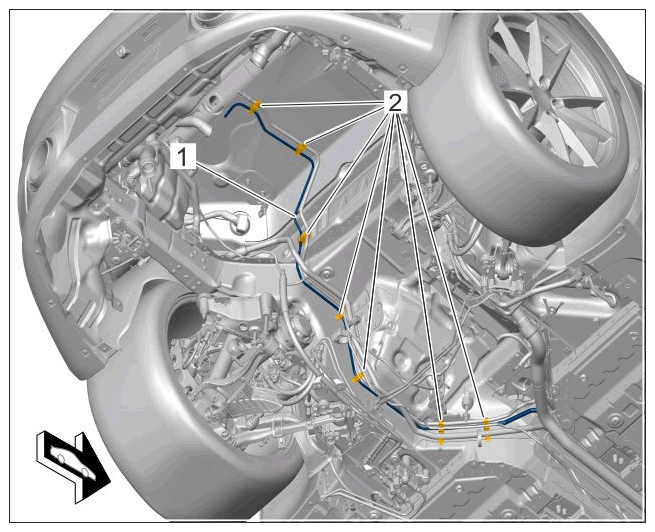

Unclip fuel line -1- from the retaining clips -2- .
Guide out and remove fuel line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel supply line (rear section)
