Installing Fuel Supply Line: Notes

Information

Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.

Information

• When installing the fuel lines, make sure not to kink or bend them.

Information

• Get another person to help you to guide the fuel line in and out.

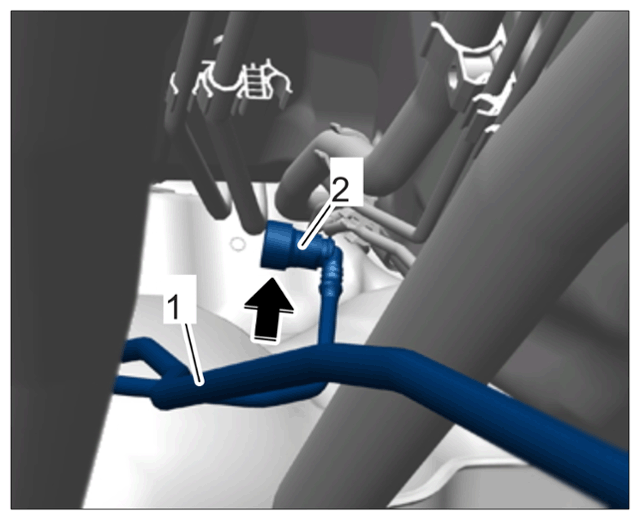

1. Guide the fuel line -1-  in from below.
   1. 1.1 A helper guides the fuel line -1-  into installation position by guiding the plug-in coupling -2-  between the foam and bulkhead in the luggage compartment from below -arrow-  .
   2. 1.2 Clip in fuel line -1-  at the top and connect plug-in coupling -2-  on the fuel line flange.
   3. 1.3 Check that the fuel line -1-  and plug-in coupling -2-  are fitted securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guiding in fuel line from below

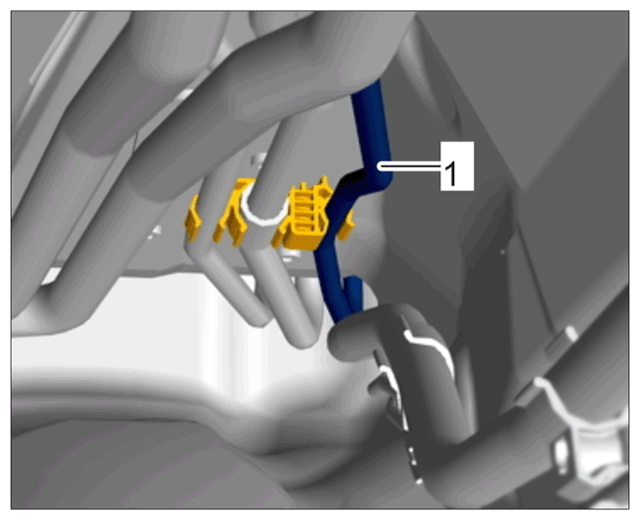

2. Clip in fuel line -1-  at the front underbody.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in fuel line at the front

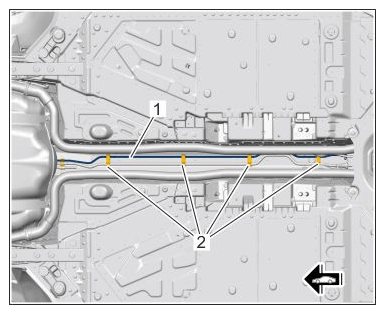

3. Secure the fuel line -1-  at the retaining clips -2-  in the tunnel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel supply line in tunnel

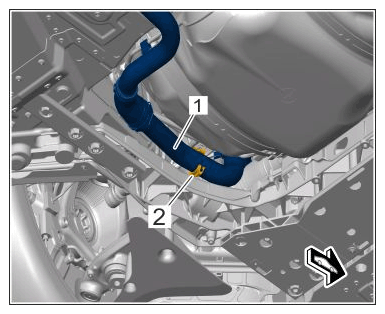

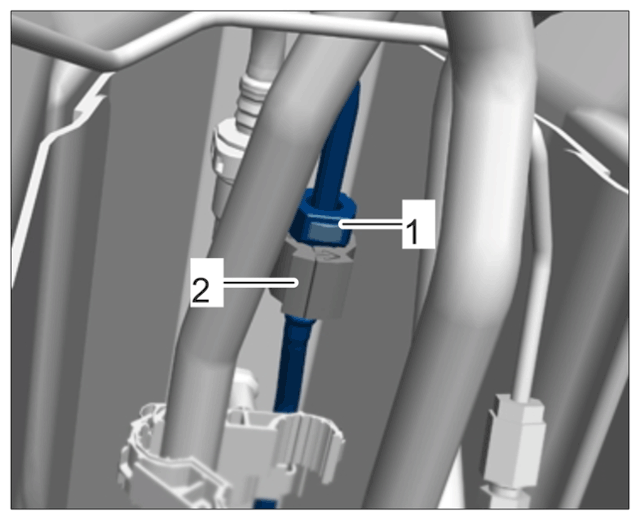

4. Connect the fuel line at the connection point -1-  .

   Check that the fuel line is fitted securely by pulling on it. Make sure that the spacer ring -2- is positioned correctly!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel line connection point

5. Clip in coolant pipe -1-  on the holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant pipe

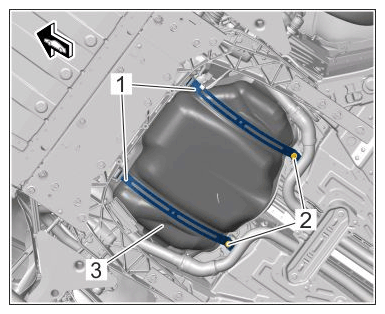

6. Secure restraining straps on fuel tank -1-  .
   1. 6.1 Position fuel tank cover -3-  .
   2. 6.2 Tighten screws -2-  .

      > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel tank

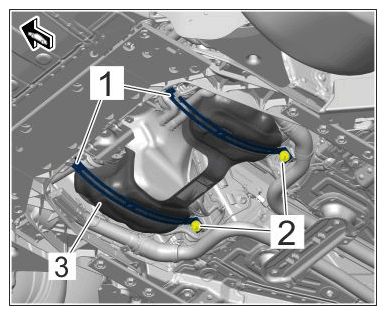

7. Secure restraining straps on fuel tank (all-wheel) -1-  .
   1. 7.1 Position fuel tank cover (all-wheel) -3-  .
   2. 7.2 Tighten screws -2-  .

      > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel tank (all-wheel) with restraining straps

   Information

   The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

8. Clip in coolant pipe -1-  on the holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant pipe

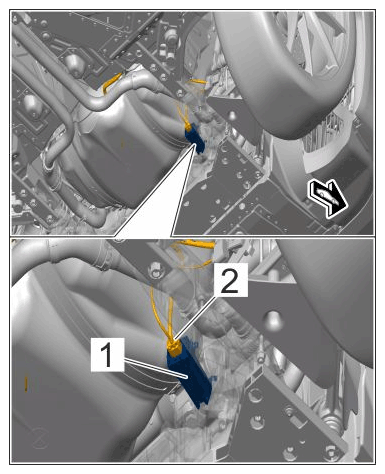

9. Secure control unit for Tyre Pressure Monitoring (TPM) -1-  .
   1. 9.1 Connect electric plug connection -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit for Tyre Pressure Monitoring (TPM)

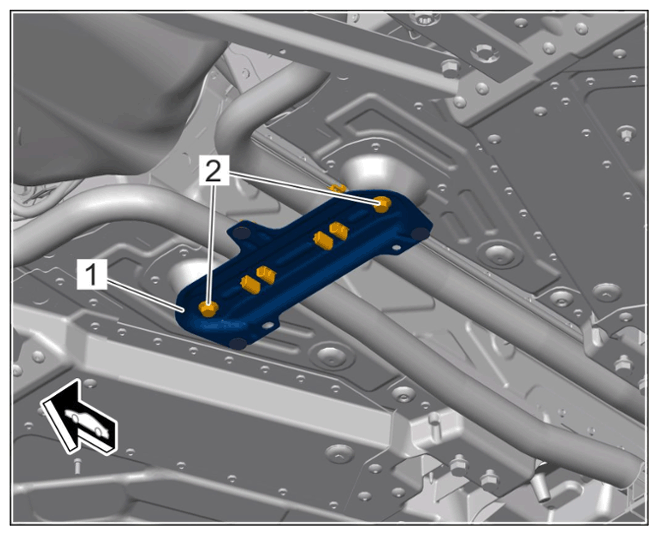

10. Install front coolant pipe holder -1-  .
    1. 10.1 Tighten screws -2-  .

       > Tightening torque 20 Nm (15 ftlb.)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front coolant pipe holder

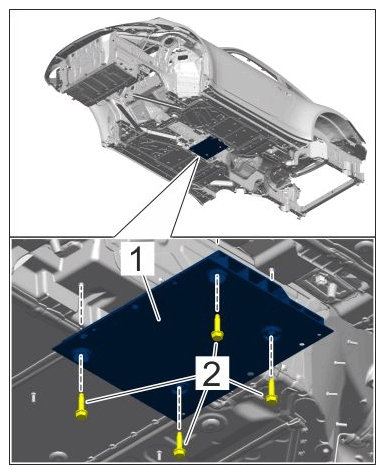

11. Install rear tunnel reinforcement -1-  .
    1. 11.1 Tighten screws -2-  .

       > Tightening torque 40 Nm (30 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear tunnel reinforcement
