Installing Fuel Supply Line (Rear Section)
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the fuel line at the connection point -1-
.
Check that the fuel line is fitted securely by pulling on it. Make sure that the spacer ring -2- is positioned correctly!
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

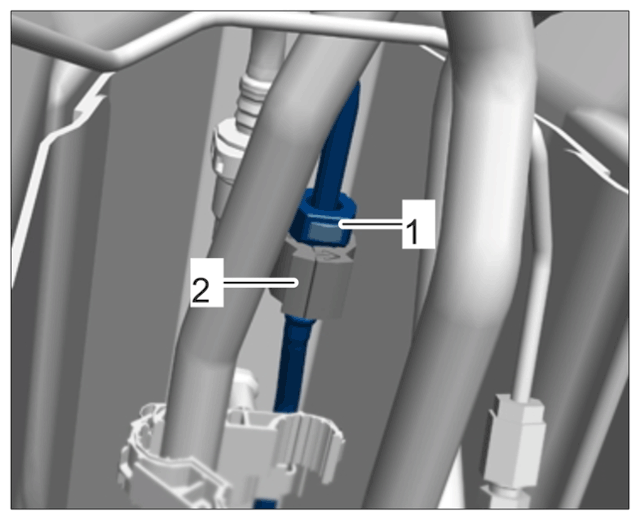

Fuel line connection point
- Clip in fuel line -1-
on the holders -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

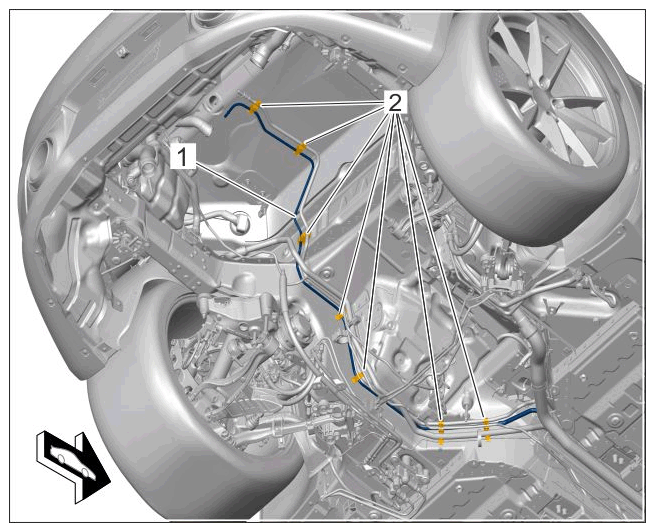

Fuel supply line (rear section)
