Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Valve block to holder | Screw, M6 | Tightening torque | 10 Nm (7.5 ftlb.) | ||

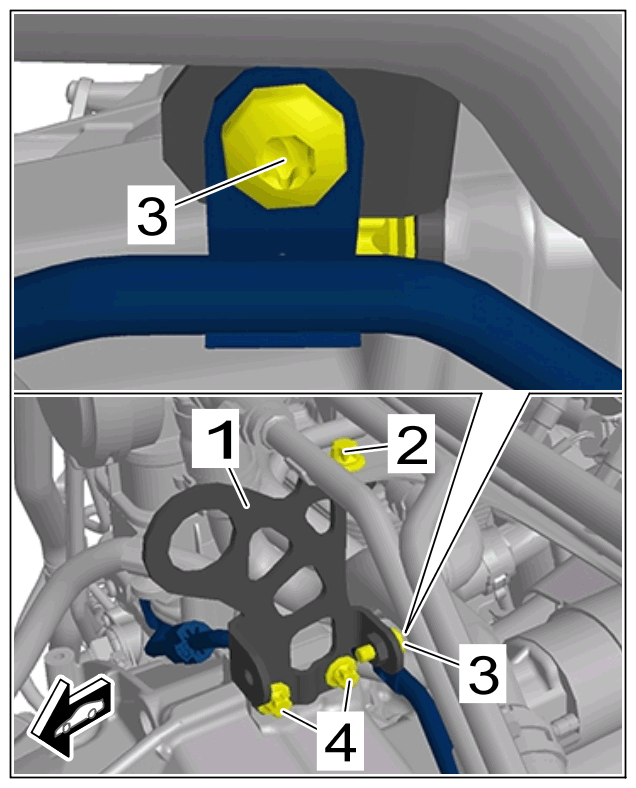

| Screws securing engine suspension eyelet to crankcase | Item 4 - M6 x 20 | Tightening torque | 13 Nm (9.5 ftlb.) | ||
|
Engine suspension eyelet |
|||||
| Holder for fuel lines | Screws, M6 | Tightening torque | 13 Nm (9.5 ftlb.) | ||
| Union nuts on fuel lines (a/f 17) | M14 x 1.5 - coat thread and cone with Microgleit DF977S (Part No. 000.043.209.35) | Initial tightening | 8 Nm (6 ftlb.) | ||
| Union nuts on fuel lines (a/f 17) | M14 x 1.5 - coat thread and cone with Microgleit DF977S (Part No. 000.043.209.35) | Final tightening torque angle | + 50° | + 10° | |
| Screw securing low-pressure line to crankcase | Item 3 | Tightening torque | 32 Nm (24 ftlb.) | ||
|

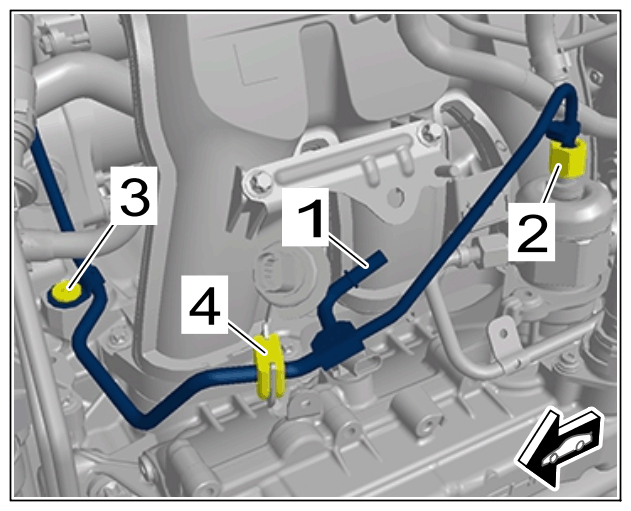

Low-pressure fuel line (lower section) |
|||||
