Removing Fuel Line (Low-Pressure Side)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Loosen top section -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

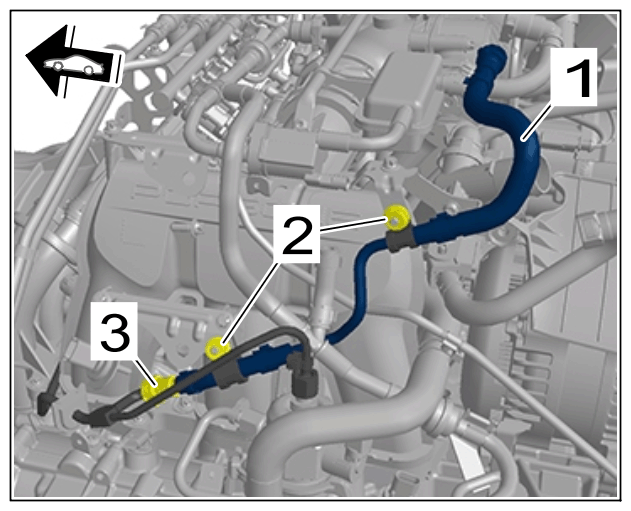

Fuel line on low-pressure side (top section)
1. 1.1 Unscrew nuts -2- and remove holder from bolts.
2. 1.2 Release and disconnect quick connector -3- .
3. 1.3 Catch escaping fuel and close off line connections using suitable stoppers.
4. 1.4 Guide out top section -1- .
Loosen bottom section -1- on cylinder bank 1.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

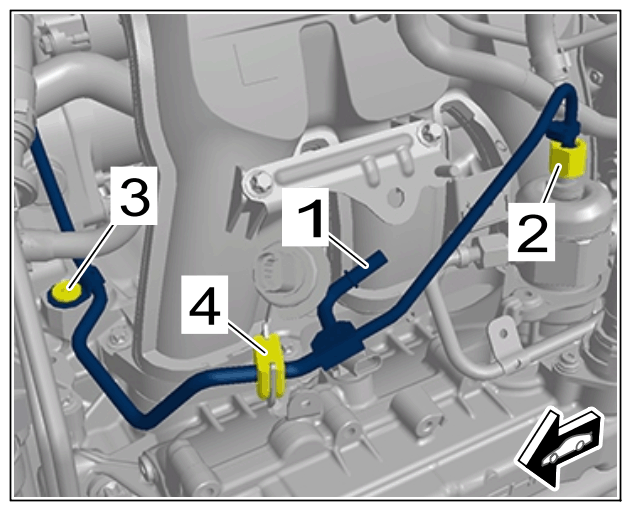

Low-pressure fuel line (bottom section)
1. 2.1 Unscrew union nut -2- .
2. 2.2 Unscrew screw on holder -3- .
3. 2.3 Unclip holder -4- .
4. 2.4 Catch escaping fuel and close off line connections using suitable stoppers.
Remove engine suspension eyelet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

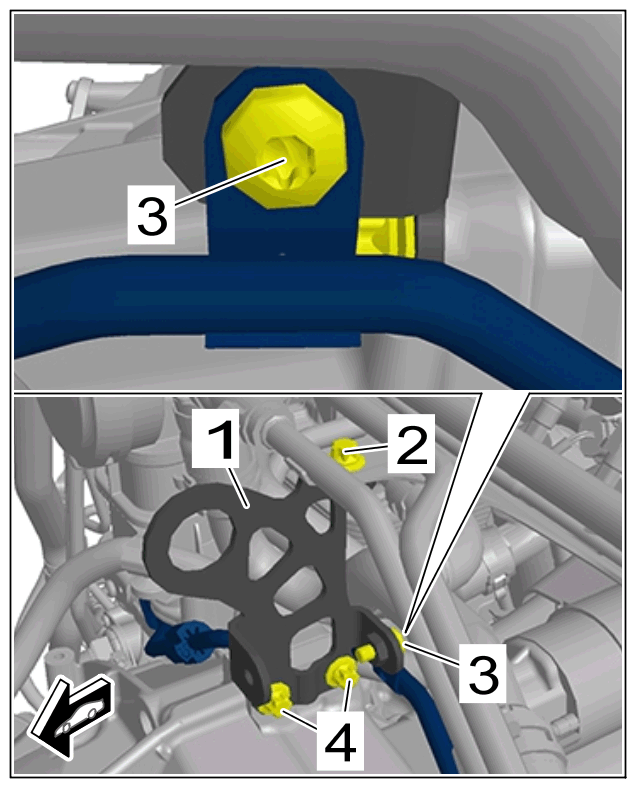

Engine suspension eyelet
1. 3.1 Unscrew screw -2- .
2. 3.2 Unscrew screw -3- .
3. 3.3 Unscrew screws -4- .
4. 3.4 Remove engine suspension eyelet -1- .
Open clip -1- and move electric line -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

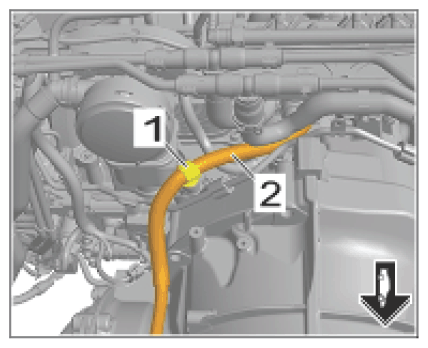

Electric line
Remove fuel line (low-pressure side) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

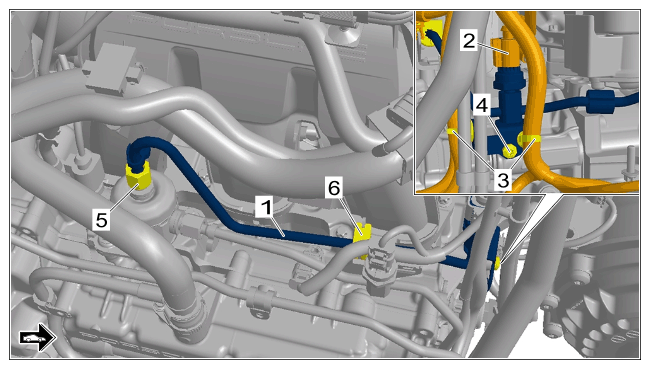

Fuel line (low-pressure side)
1. 5.1 Loosen holder for fuel pressure sensor.
  1. 5.1.1 Release and disconnect electric plug connection for fuel pressure sensor -2- .
  2. 5.1.2 Unclip clips -3- .
  3. 5.1.3 Unscrew screw on fuel pressure sensor -4- .
2. 5.2 Unscrew union nut -5- .
3. 5.3 Unclip holder -6- and guide out fuel line on low-pressure side -1- .
4. 5.4 Catch escaping fuel and close off line connections using suitable stoppers.
