Removing Carbon Canister

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect carbon canister -4-  .

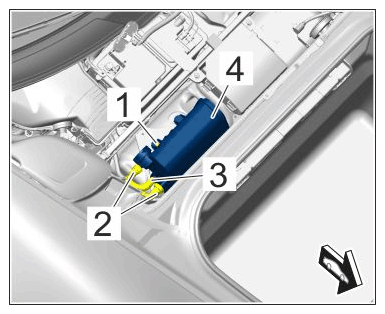

    G15508100Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister

    1. 1.1 Unscrew screw -1-  .
    2. 1.2 Release and disconnect plug-in couplings -2-  .
    3. 1.3 Pull off hose -3-  .
  2. Remove carbon canister -1-  .

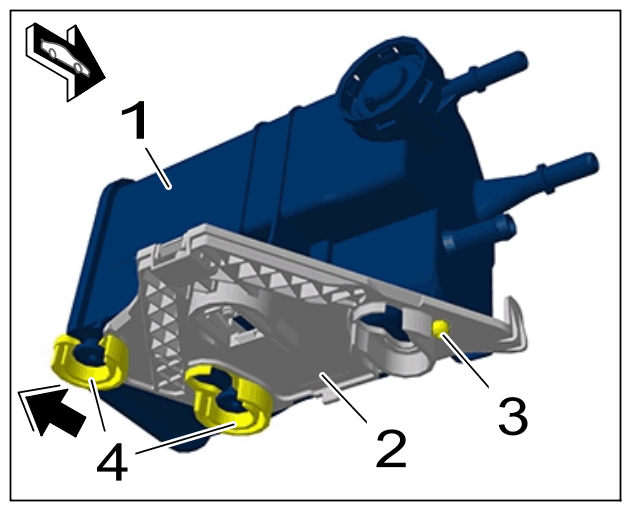

    G15508101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister - view from below

    1. 2.1 Unclip carbon canister -1-  from latches -4-  on the retainer plate -2-  in -direction of arrow-  . When doing so, make sure not to damage the guide pin -3-  .
