Removing Carbon Canister With Leakage Diagnosis Module

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect carbon canister -1-  .

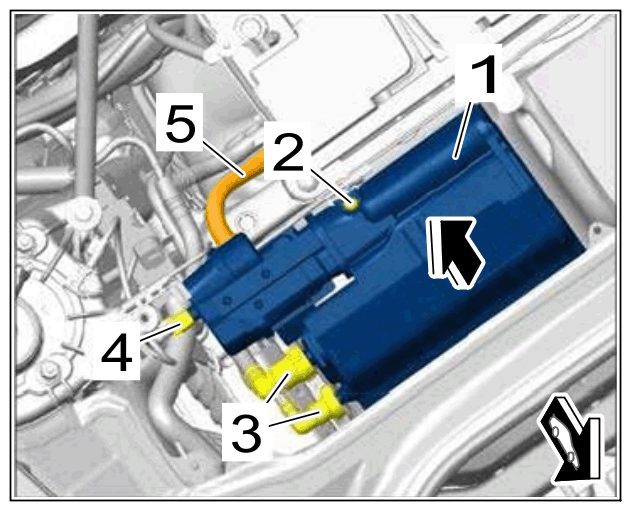

    G15508102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister with leakage diagnosis module

    1. 1.1 Unscrew screw -2-  .
    2. 1.2 Release and disconnect plug-in couplings -3-  .
    3. 1.3 Release and disconnect electric plug connection -4-  .
    4. 1.4 Pull off hose -5-  .
  2. Remove carbon canister -1-  .

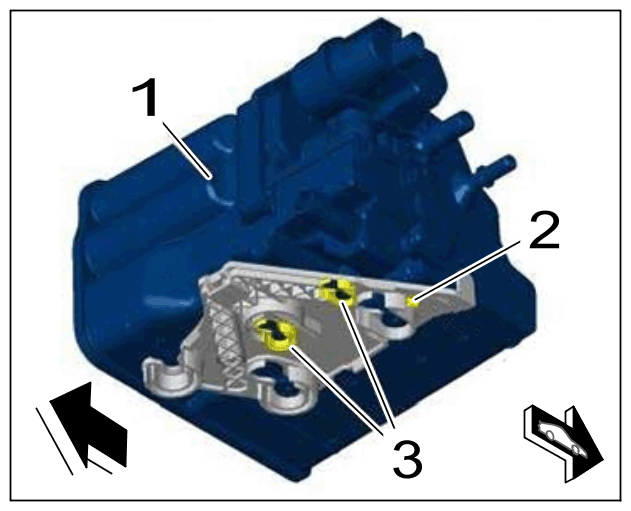

    G15508103Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister with leakage diagnosis module - view from below

    1. 2.1 Unclip carbon canister -1-  from the latches -3-  in -direction of arrow-  . When doing so, make sure not to damage the guide pin -2-  .
