Installing Carbon Canister With Leakage Diagnosis Module

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install carbon canister -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

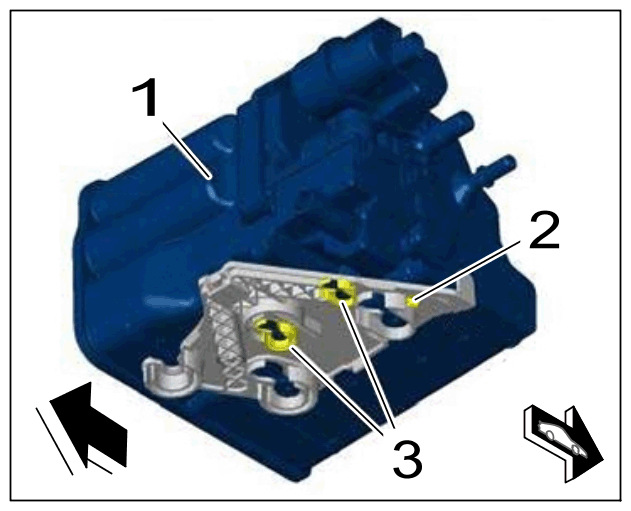

Carbon canister with leakage diagnosis module - view from below
1. 1.1 Clip carbon canister -1- in the opposite direction to -direction of arrow- into latches -3- . When doing so, make sure not to damage the guide pin -2- .
Secure carbon canister -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

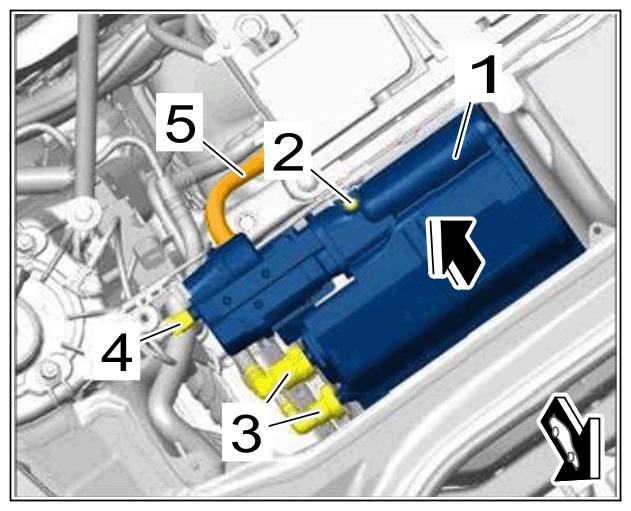

Carbon canister with leakage diagnosis module
1. 2.1 Screw in and tighten screw -2- .
  > Tightening torque 3 Nm (2 ftlb.)
2. 2.2 Connect and lock plug-in couplings -3- .
3. 2.3 Connect and lock electric plug connection -4- .
4. 2.4 Connect the hose -5- .
