Removing Tank Vent

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

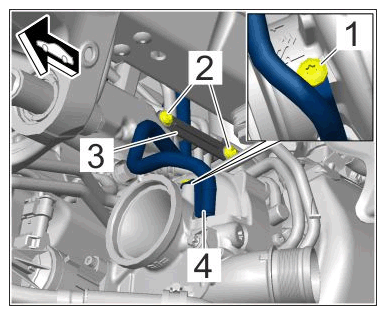

Disconnect tank vent line -4- on the turbocharger.
1. 1.1 Unscrew screws -1 and 2- and unclip line bracket -3- .
2. 1.2 Disconnect tank vent line -4- from turbocharger.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom

Information

Shown with engine removed for greater clarity.

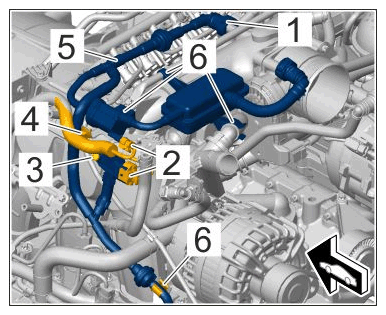

Remove tank vent valve.
1. 2.1 Release and disconnect quick connector -1- .
2. 2.2 Release and disconnect cable plug -2- .
3. 2.3 Unscrew screw -3- .
4. 2.4 Unclip wire harness -4- .
5. 2.5 Unclip tank vent valve with tank vent lines -5- at the fastening points -6- and carefully guide out of the engine compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, top
