Installing Tank Vent

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Shown with engine removed for greater clarity.

Information

Shown with engine removed for greater clarity.

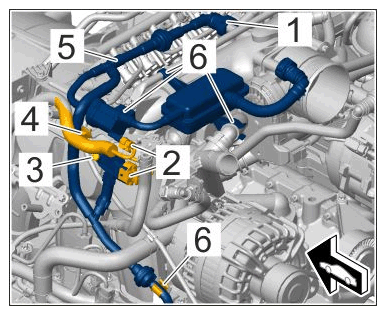

Install tank vent valve.
1. 1.1 Carefully guide tank vent valve with tank vent lines -5- into the engine compartment and clip in at the fastening points -6- .
2. 1.2 Clip in wire harness -4- .
3. 1.3 Fit and tighten screw -3- .
  > Tightening torque 10 Nm (7.5 ftlb.)
4. 1.4 Plug in cable plug -2- .
5. 1.5 Connect quick connector -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, top

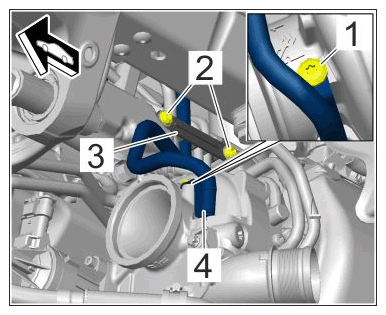

Fasten tank vent line on the turbocharger.
1. 2.1 Replace O-rings on the tank vent line and insert tank vent line -4- into the turbocharger.
2. 2.2 Clip in line bracket -3- , fit screws -1 and 2- and tighten them.
  -1- >

  -2- >

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom
