Removing Tank Vent Valve

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Shown with engine removed for greater clarity.

  1. Disconnect vacuum line -1-  .

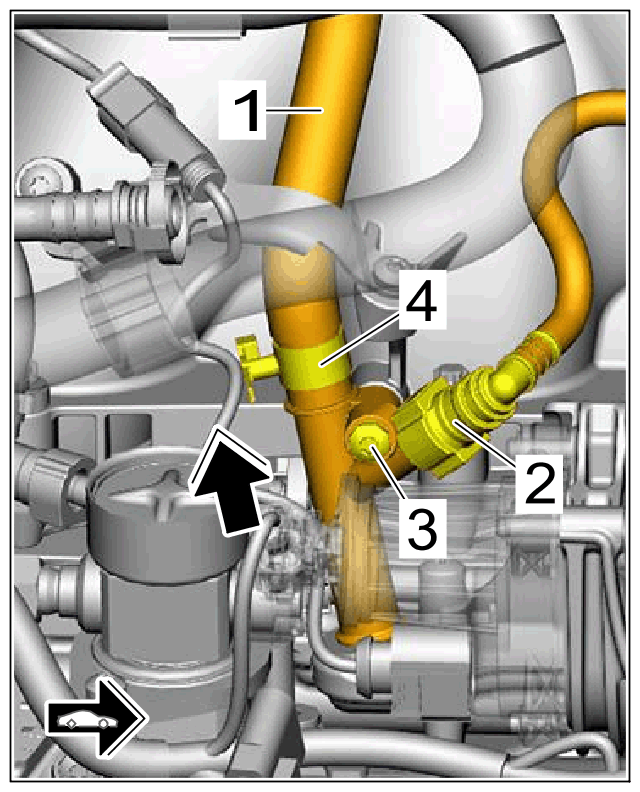

    G15508089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum line

    1. 1.1 Release and disconnect quick connector -2-  .
    2. 1.2 Unscrew screw -3-  .
    3. 1.3 Unclip clip -4-  .
    4. 1.4 Disconnect vacuum line -1-  in -direction of arrow-  and move it aside.
    5. 1.5 Close off line connections using suitable stoppers.
  2. Pull off the vacuum line -1-  in -direction of arrow-  , move it aside and close off line connections using suitable stoppers.

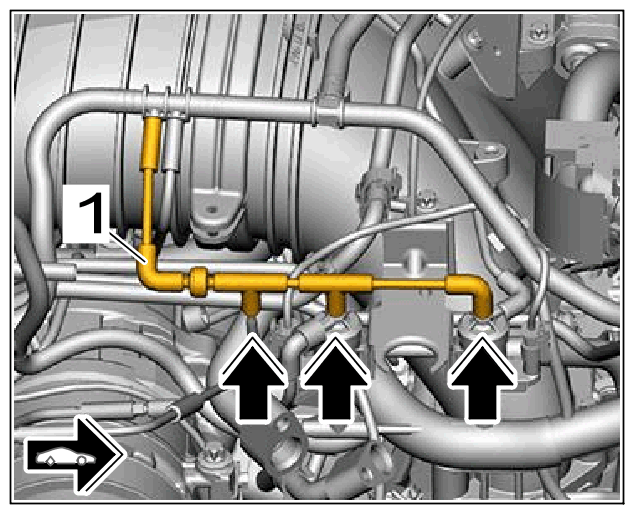

    G15508090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum line

  3. Release vacuum line -1-  and electric line -2-  .

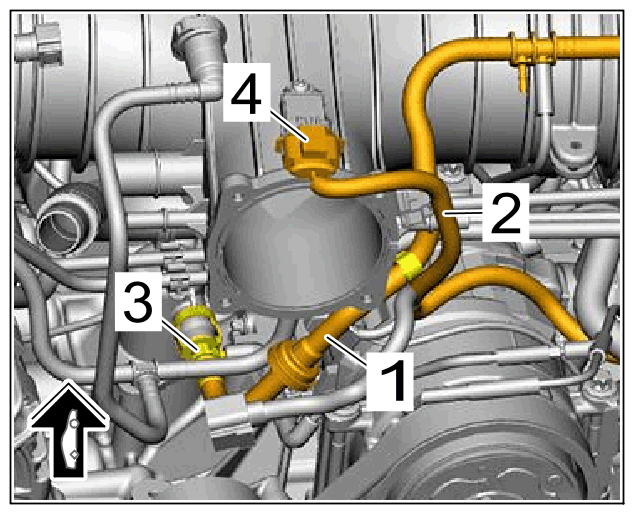

    G15508091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum line and electric line

    1. 3.1 Release and disconnect quick connector -3-  .
    2. 3.2 Close off line connections using suitable stoppers.
    3. 3.3 Release and disconnect electric plug connection -4-  .
    4. 3.4 Move vacuum line -1-  and electric line -2-  to the side.
  4. Release tank vent valve, right -1-  .

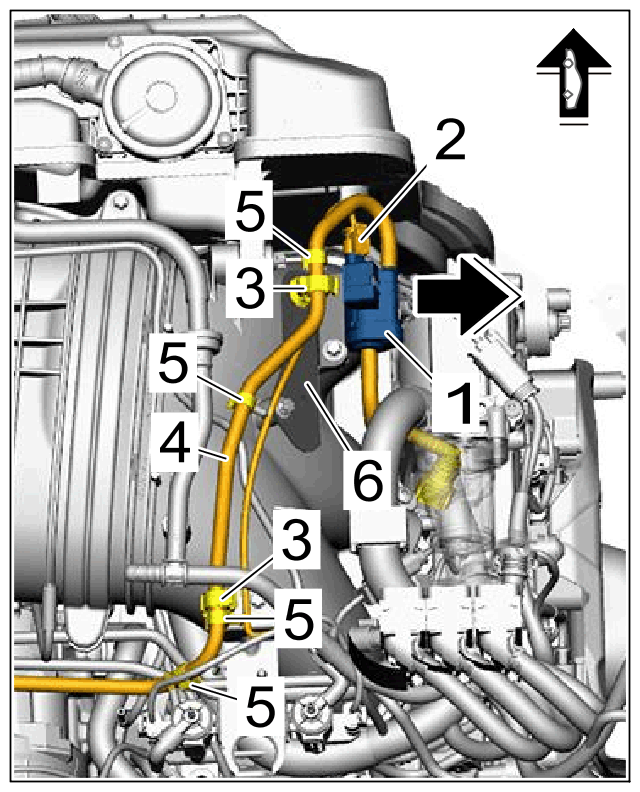

    G15508092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent valve, right

    1. 4.1 Release and disconnect electric plug connection -2-  .
    2. 4.2 Open line bracket -3-  and remove line -4-  .
    3. 4.3 Unclip omega clips -5-  .
    4. 4.4 Pull tank vent valve, right -1-  in -direction of arrow-  off holder -6-  .
  5. Release tank vent valve, left -1-  .

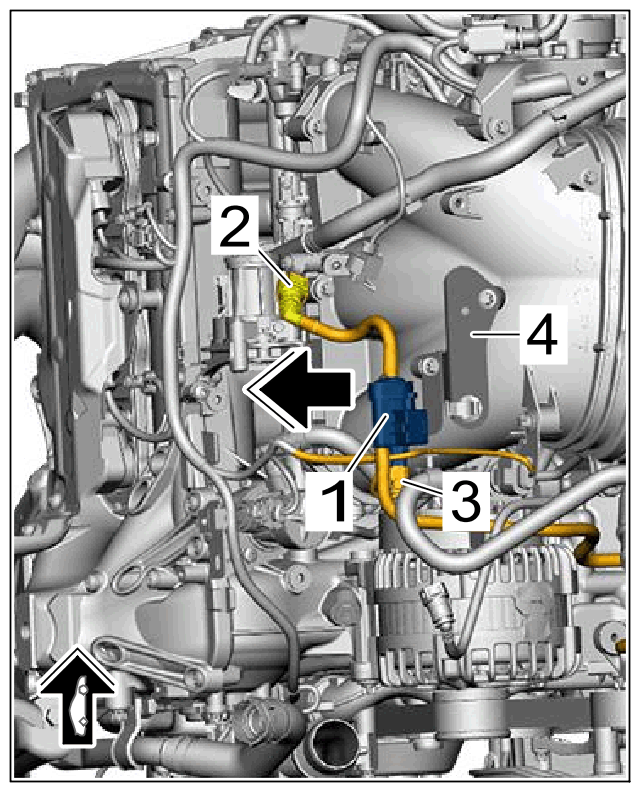

    G15508093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent valve, left

    1. 5.1 Release and disconnect quick connector -2-  .
    2. 5.2 Close off line connections using suitable stoppers.
    3. 5.3 Release and disconnect electric plug connection -3-  .
    4. 5.4 Pull tank vent valve, left -1-  in -direction of arrow-  off holder -4-  .
  6. Guide out tank vent valves together with lines from the engine compartment.
