Installing Tank Vent Valve

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Shown with engine removed for greater clarity.

Place tank vent valves together with lines in installation position.
Secure tank vent valve, left -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

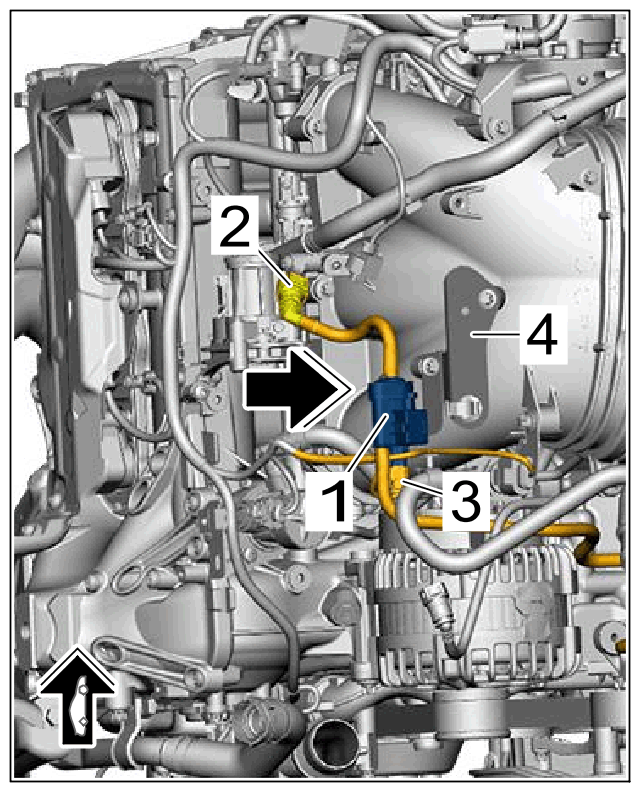

Tank vent valve, left
1. 2.1 Place left tank vent valve -1- in -direction of arrow- on holder -4- .
2. 2.2 Connect and lock electric plug connection -3- .
3. 2.3 Push on and lock quick connector -2- .
Secure tank vent valve, right -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

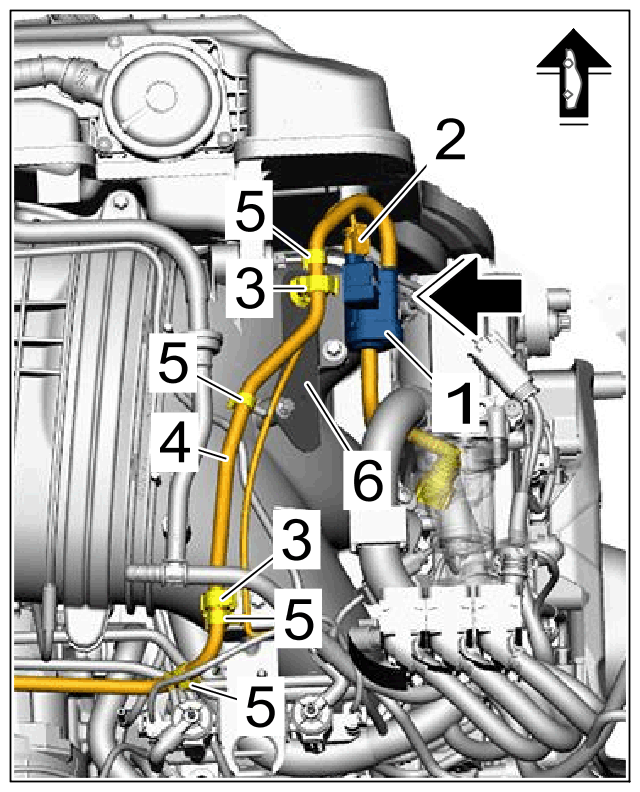

Tank vent valve, right
1. 3.1 Place right tank vent valve -1- in -direction of arrow- on holder -6- .
2. 3.2 Close line bracket -3- and clip line -4- in omega clips -5- .
3. 3.3 Connect and lock electric plug connection -2- .
Secure vacuum line -1- and electric line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

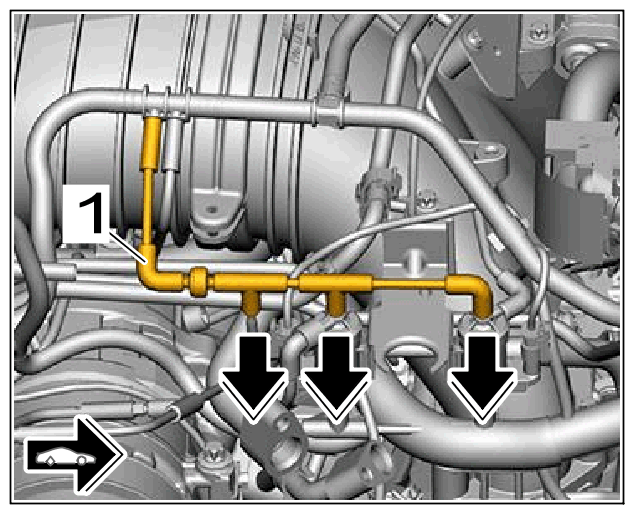

Vacuum line and electric line
1. 4.1 Position vacuum line -1- and electric line -2- .
2. 4.2 Connect and lock electric plug connection -4- .
3. 4.3 Push on and lock quick connector -3- .

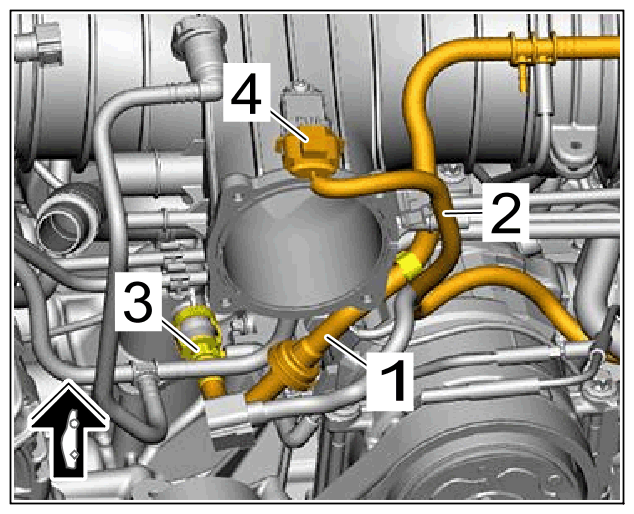

Connect vacuum line -1- in -direction of arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum line
Securing vacuum line -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

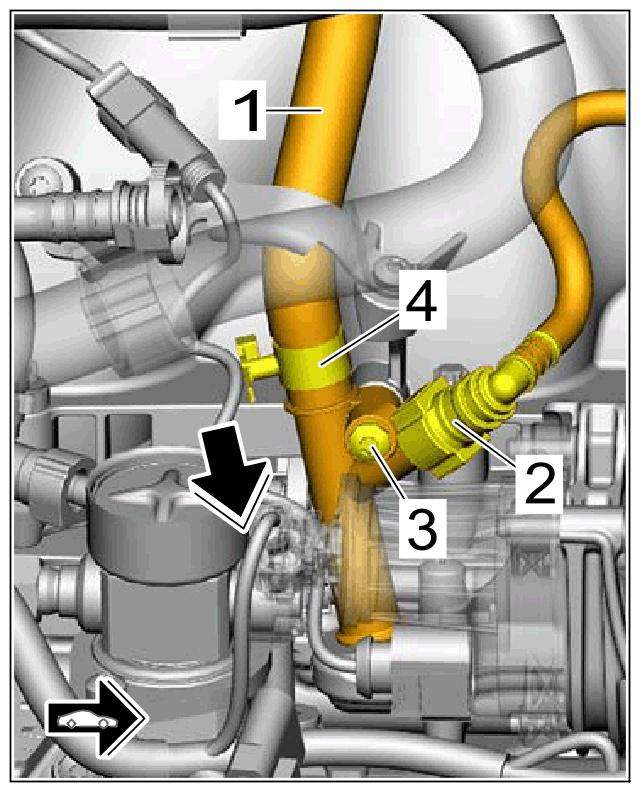

Vacuum line
1. 6.1 Check O-ring for damage and replace if necessary.
2. 6.2 Plug in vacuum line -1- in -direction of arrow- .
3. 6.3 Screw in and tighten screw -3- .
  > Torque 10 Nm (7.5 ftlb.)
4. 6.4 Push on and lock quick connector -2- .
5. 6.5 Clip in clip -4- .
