Installing Carbon Canister Line

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin
→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

Installing carbon canister line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

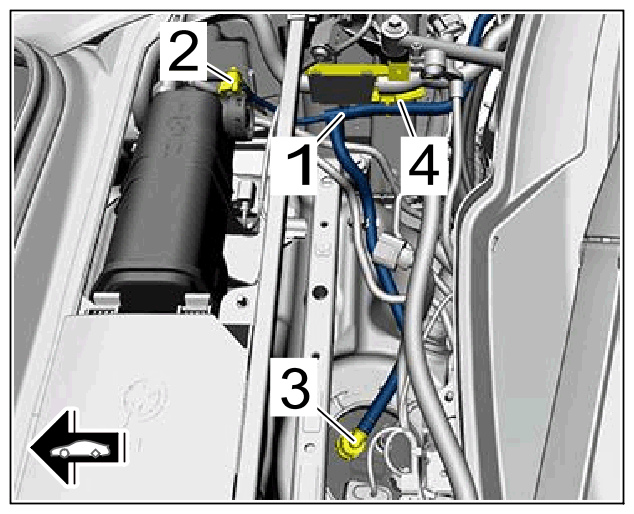

Carbon canister line
1. 1.1 Position carbon canister line -1- .
2. 1.2 Push on and lock quick connectors -2 and 3- .
3. 1.3 Clip carbon canister -1- into holder -4- .
Fasten carbon canister line -1- onto the filler neck -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

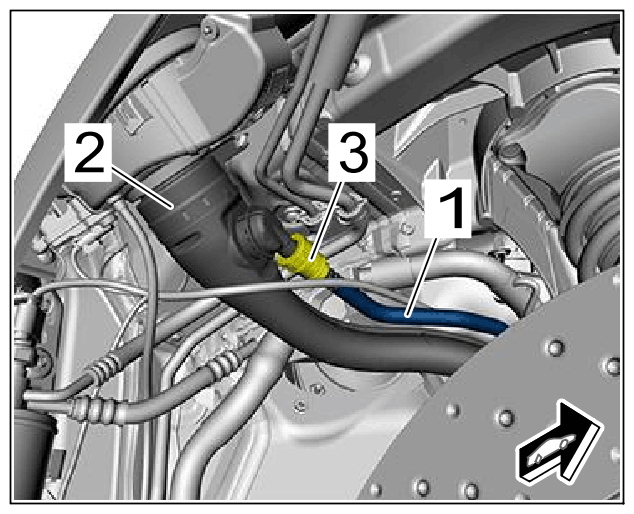

Carbon canister line at the filler neck
1. 2.1 Position carbon canister line -1- .
2. 2.2 Push on and lock quick connector -3- .
