Component Overview

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

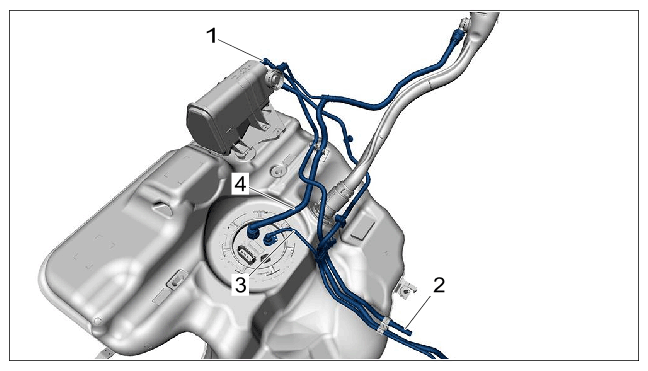

Fig 1: Fuel Lines On Fuel Tank Components Location
G15508077Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel lines on fuel tank

1  Purge-air line front section
2  Ventilation line
3  Supply line (fuel tank) front section
4  Carbon canister line
