Removing Purge-Air Line (Rear Section)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

Remove purge-air line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

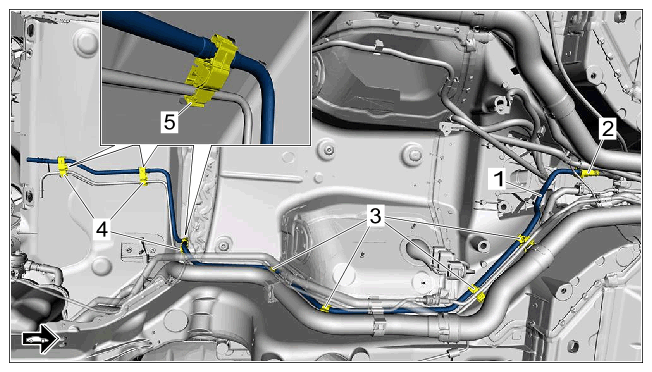

Purge-air line
1. 1.1 Release and disconnect connection point -2- of the purge-air line -1- on the underbody.
2. 1.2 Close off line connections using suitable stoppers.
3. 1.3 Unclip purge-air line -1- from clips -3- .
4. 1.4 Release locking lugs -5- on line brackets -4- .
5. 1.5 Disengage and remove purge-air line -1- from line brackets -4- .
