Preliminary Work (Front Section)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place protective covers on the vehicle.
  2. Place a warning sign in a clearly visible position in the work area or on the vehicle.

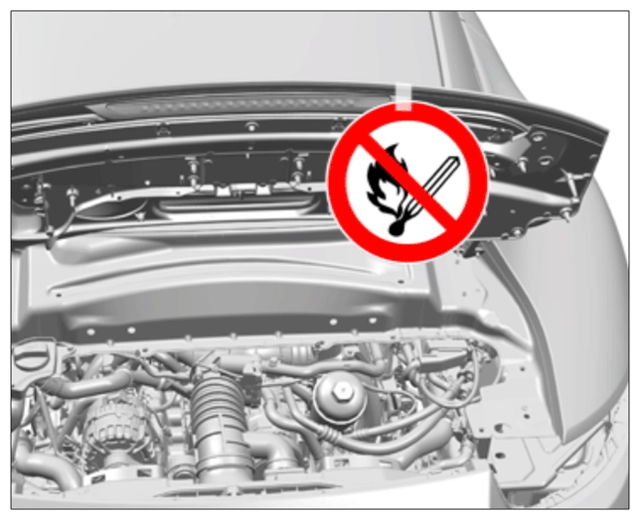

    G15508051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Example of warning sign

  3. Remove battery console.

    Refer to the appropriate service information.

  4. Remove covers for front, center and rear underbody.

    Refer to the appropriate service information.

  5. Remove rear tunnel reinforcement.

    Refer to the appropriate service information.

  6. Remove front-axle support.

    400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT
