Installing Purge-Air Line (Rear Section)
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

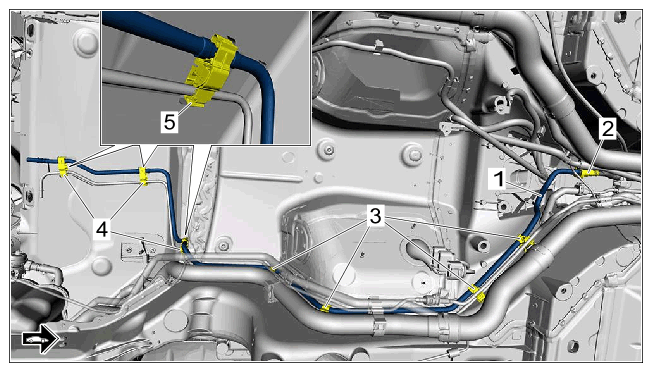

- Install purge-air line -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Purge-air line
- 1.1 Fit and lock connection point -2-
for purge-air line -1-
on the underbody.
- 1.2 Mount purge-air line -1-
in line bracket -4-
.
- 1.3 Lock locking lugs -5-
on line brackets -4-
.
- 1.4 Clip purge-air line -1-
into clips -3-
.
