Installing Purge-Air Line (Front Section)
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.
- Danger of material damage and injury
→ Only check fuel pressure and delivery rate when the engine is cold.
- Position the purge-air line in the vehicle.
- 1.1 Insert purge-air line with the plug-in coupling from below in between the foam part and bulkhead and hold it in this position.
Information
You will need a second mechanic to help you with this step.

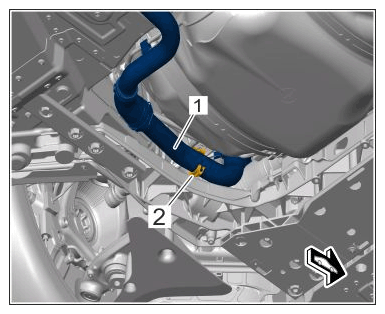

- Position purge-air line -1-
and clip into holder -2 and 3-
.
Purge-air line
Information
You will need a second mechanic to help you with this step.
- Fasten purge-air line -1-
to carbon canister -2-
.

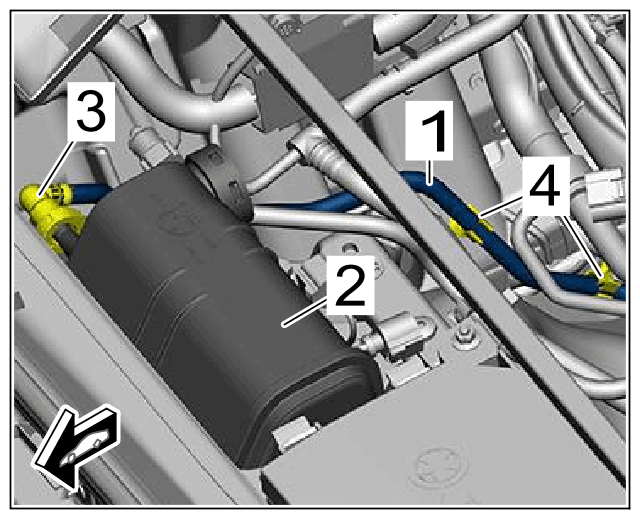

Purge-air line on carbon canister
- 3.1 Fit and lock quick connector -3- for the purge-air line -1- .
- 3.2 Clip purge-air line -1- into holders -4- .
Information
You will need a second mechanic to help you with this step.

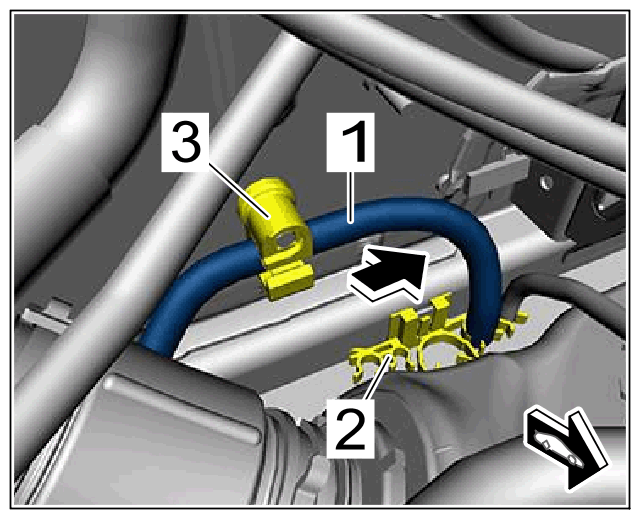

- Clip ventilation line -1-
into holder -2 and 3-
.
Ventilation line

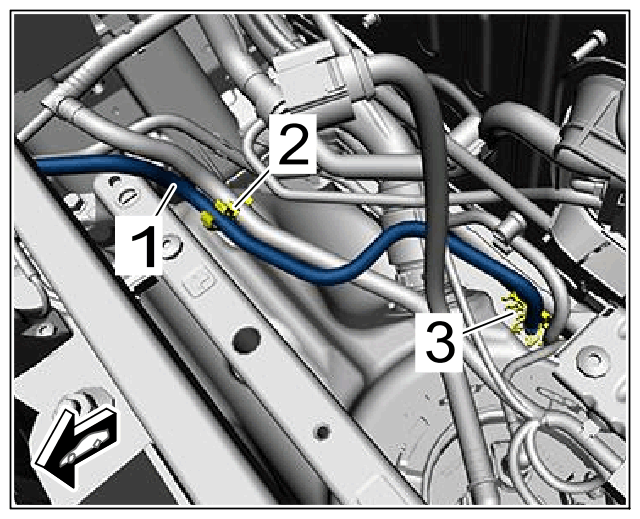

- Fasten purge-air line -1-
to center tunnel.

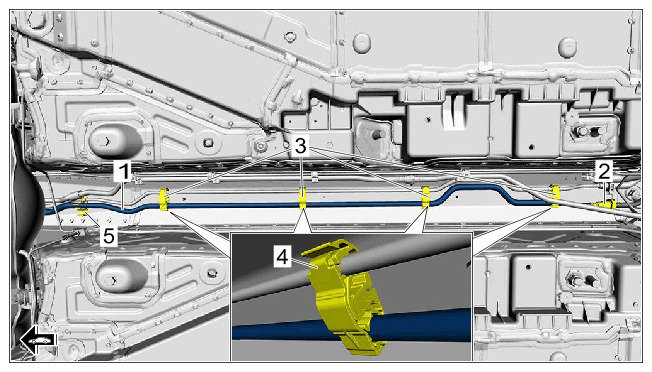

Purge-air line in the center tunnel
- 5.1 Fit and lock connection point for purge-air line -2- on the underbody.
- 5.2 Engage purge-air line -1- into the line brackets -3- and lock the locking lugs of the line brackets -4- .
- 5.3 Clip purge-air line -1- into brackets -5- .

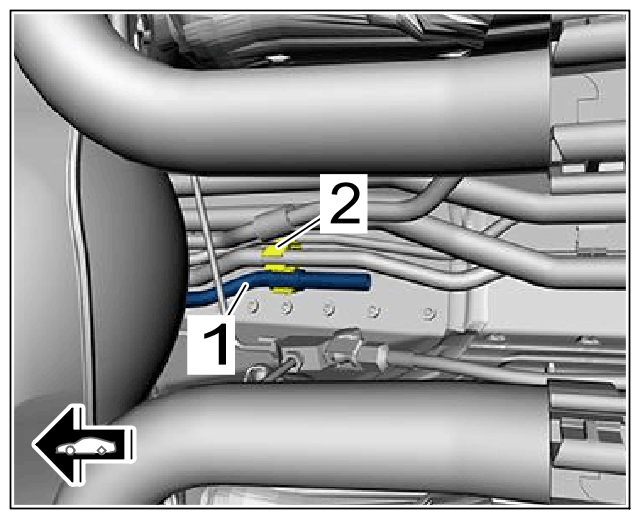

- Clip ventilation line -1-
into holder -2-
.
Ventilation line

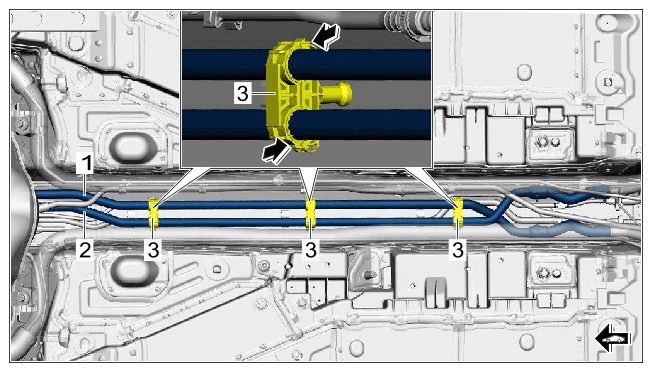

- Secure coolant lines -1 and 2-
.
Coolant lines in center tunnel
- 7.1 Engage coolant lines -1 and 2- in line holder -3- .
- 7.2 Lock locking lugs -Arrows- on line brackets -3- .
- Secure restraining straps on fuel tank -1-
.

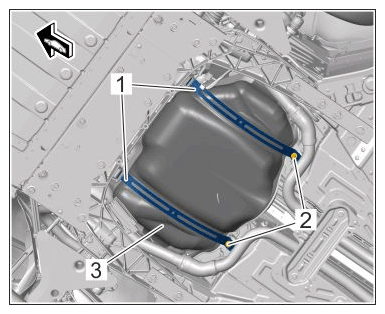

Fuel tank with restraining straps
- 8.1 Position fuel tank cover -3- and fuel tank restraining straps -1- .
- 8.2 Screw in and tighten screws -2-
.
> Tightening torque 23 Nm (17 ftlb.)
- Clip coolant pipe -1-
into the holders -2-
.
Coolant pipe

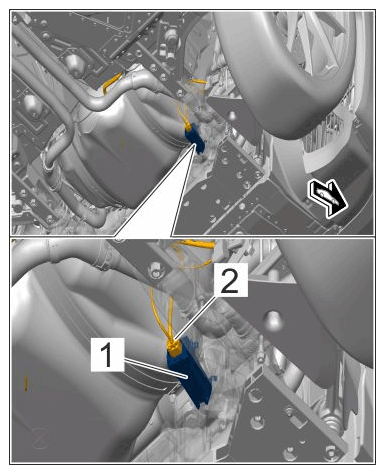

- Secure control unit for Tyre Pressure Monitoring (TPM) -1-
.
Control unit for Tyre Pressure Monitoring (TPM)
- 10.1 Connect and lock electric plug connection -2- .

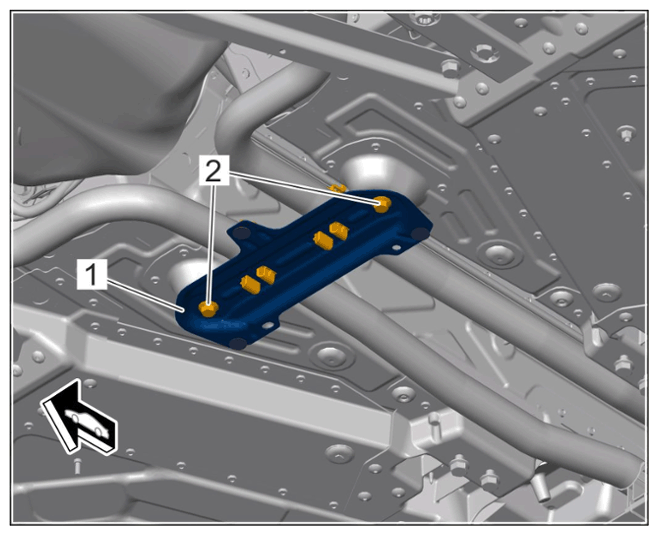

- Install front coolant pipe holder -1-
.
Front coolant pipe holder
- 11.1 Position holders for front coolant pipes -1- .
- 11.2 Screw in and tighten screws -2-
.
> Tightening torque 20 Nm (15 ftlb.)
- 11.3 Clip in coolant pipes.
