Component Overview
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

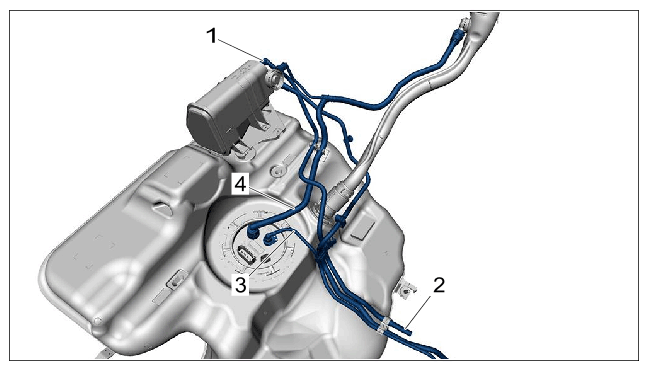

Fuel lines on fuel tank
| 1 |
Purge-air line (front section) |
| 2 |
Ventilation line |
| 3 |
Supply line (fuel tank) front section |
| 4 |
Carbon canister line |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

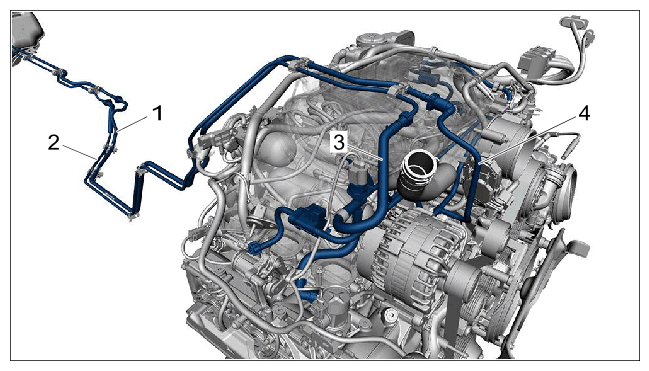

Component overview in rear
| 1 |
Purge-air line (rear section) |
| 2 |
Supply line (fuel tank) rear section |
| 3 |
Supply line (engine) |
| 4 |
Tank vent line |
