Removing Fuel Tank

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Flammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapors.

    → Attach warning sign in a clearly visible position.

NOTE: NOTIFICATION
Fuel system is pressurized
  • Risk of eye injuries

    → Wear personal protective gear

    → Release pressure by carefully pulling off lines and hoses

Information

Get another person to help you to remove and install the fuel tank.

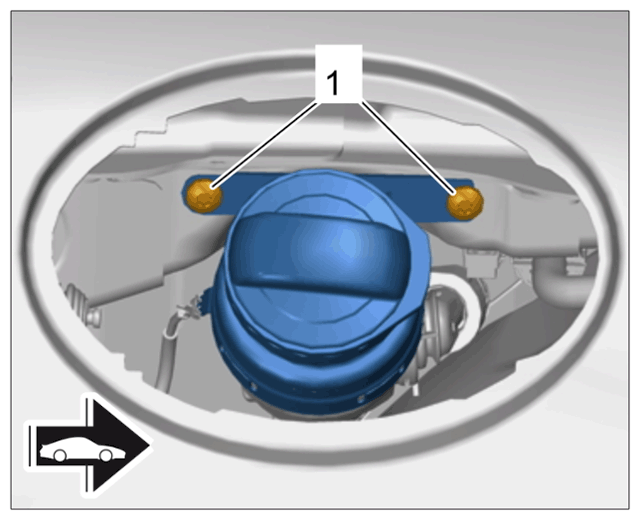

  1. Unscrew screws on the filler neck holder -1-  .
    G15507990Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler neck holder

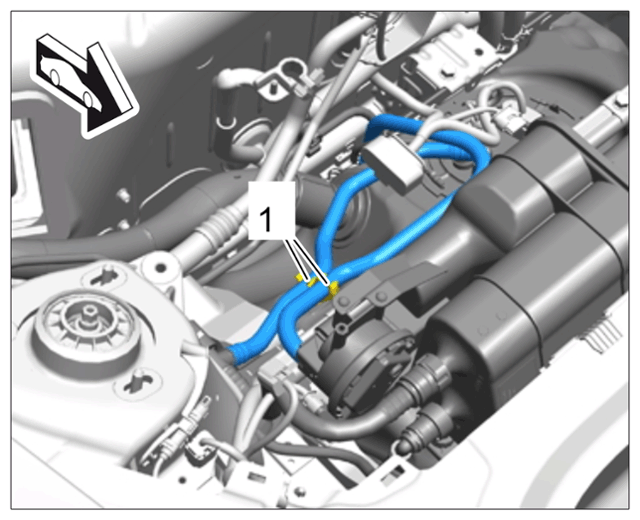

  2. Unclip tank vent lines -1-  from the fuel tank.
    G15507991Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent lines

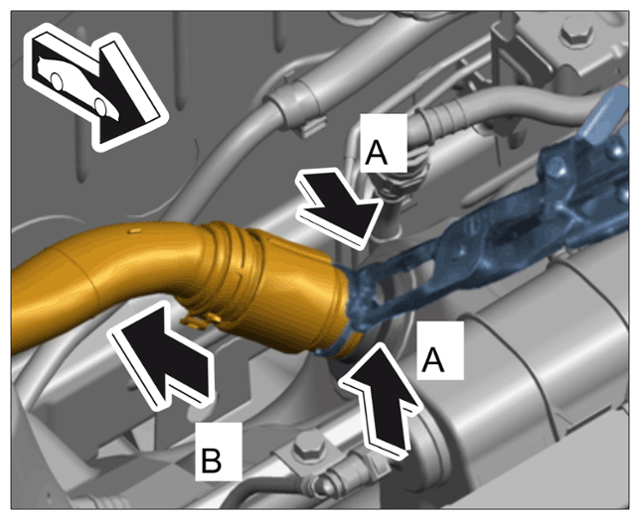

  3. Loosen filler neck.
    1. 3.1 Loosen spring band clamps for the filler neck using > VAS 6890 - spring band clamps pliers  (-A -  ).
    2. 3.2 Pull filler neck off the connection -B -  .
    3. 3.3 Catch escaping fuel and close off line connections using suitable stoppers.
    G15507992Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler neck

  4. Only if the flange was not already removed for extraction of fuel:

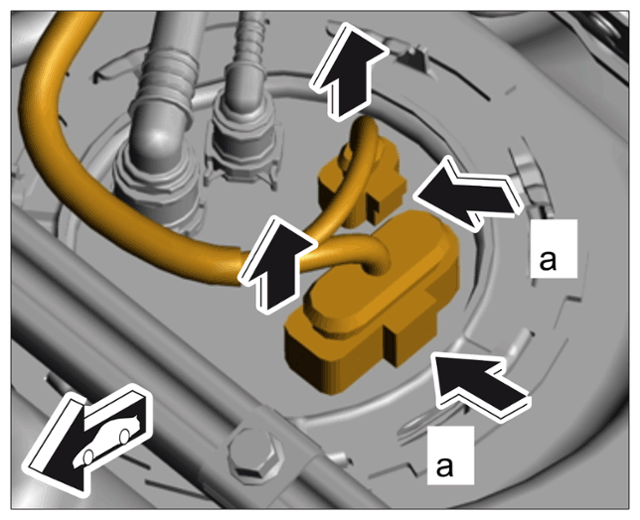

    Release -a-  and pull off -Arrow-  electric plug connections on fuel level sensor.

    G15507993Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on fuel level sender

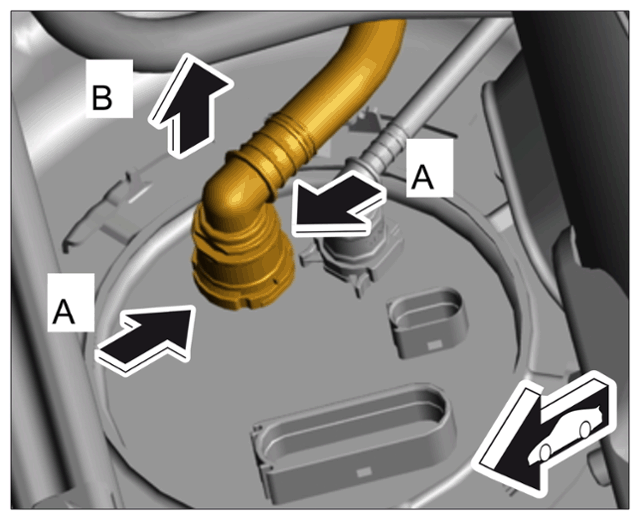

  5. Release the tank vent line at the flange in -direction of arrow A-  and pull it off -B -  .
    G15507994Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent line at the fuel tank flange

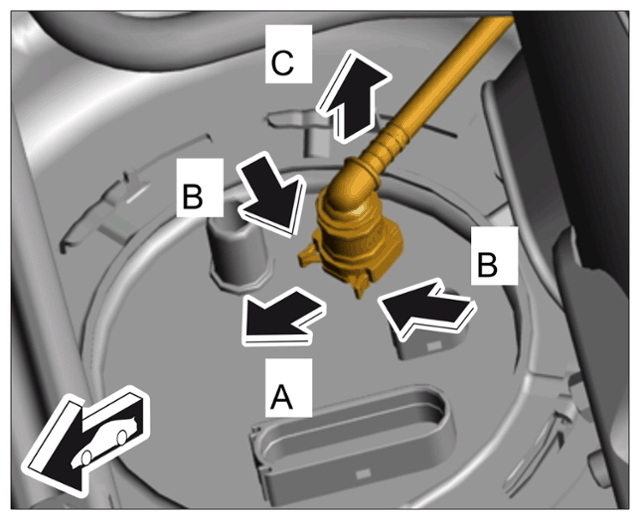

  6. Disconnect supply line.
    1. 6.1 If installed:  Open the lock in -direction of arrow A-  .
    2. 6.2 Release and pull off supply line in -direction of arrow B-  (-C -  ).
    G15507995Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply line on fuel tank flange

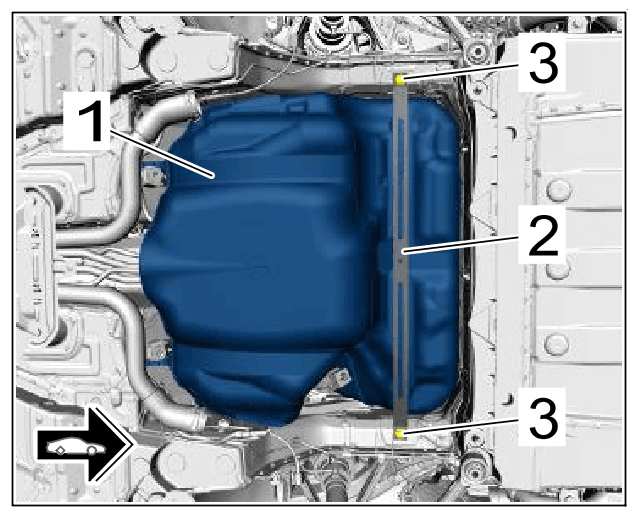

  7. Remove fuel tank -1-  .
    G15507996Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank

    1. 7.1 Unscrew screws -3-  and remove tensioning strap -2-  .
    2. 7.2 Unclip the clips and get another person to help you guide the fuel tank -1-  down and out of the vehicle.
