Installing Fuel Tank

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Flammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapors.

    → Attach warning sign in a clearly visible position.

WARNING: Caustic fluids
  • Danger of chemical burns

    → Wear personal protective gear.

    → Ensure that there is good ventilation.

    → Avoid contact with caustic fluid.

    → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

NOTE: NOTIFICATION
Fuel vapors from empty fuel tank
  • Danger of injury and material damage due to risk of explosion

    → If the fuel tank has been emptied or replaced, it must be filled with fuel immediately after carrying out repairs.

Information

Get another person to help you to remove and install the fuel tank.

  1. Install fuel tank.

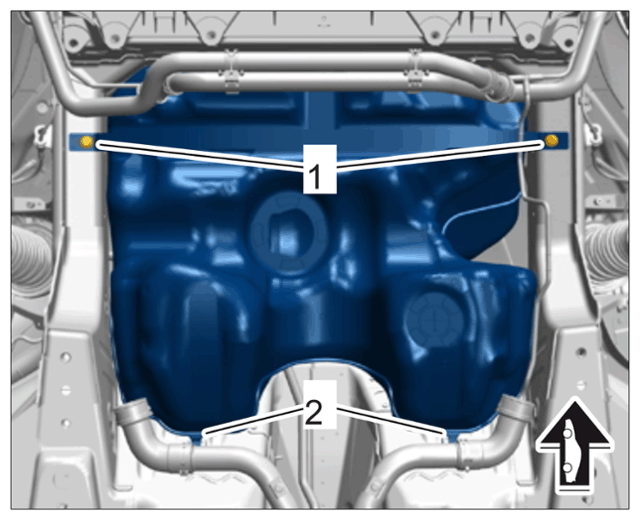

    1. 1.1 Place the fuel tank in installation position with the help of another person.
    2. 1.2 Engage clips -2-  in the body.
    3. 1.3 Fit and tighten two screws (M8 x 40) -1-  .
    G15507976Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank mount

    Information

    • Check O-rings on the plug-in couplings and replace them if necessary.
    • Clean plug connection and coolant hoses before assembly.
    • Coat O-rings and coolant hoses with Kluber Plus Gel (Part No. 000.043.205.93).
    • Remove stoppers before fitting the coolant lines and hoses.
  2. Install coolant pipe at the left and right.
    1. 2.1 Fit spring clamps and connect coolant pipes.
    2. 2.2 Clip in vent line.
  3. Tighten screws on the holders.
  4. Clip lines into the clip -1-  on the fuel tank.
    G15507977Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in lines

  5. Connect fuel and vent lines -A-  and check that they are fitted securely.

    Lock fuel line -B-  (if fitted).

    G15507978Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting lines

  6. Connect cable plugs -arrow-  and check that they are fitted securely.
    G15507979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting plug connections

  7. Secure the filler neck.
    1. 7.1 Position clamp on the flange on the fuel tank.
    2. 7.2 Push the filler neck onto the flange on the fuel tank.
    3. 7.3 Tighten internal Torx M6 screws -1-  for the filler neck.
      G15507980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Filler neck mounting

    4. 7.4 Press filler neck onto the flange -A-  , position the clamp and secure the filler neck with the clamp -B-  .
G15507981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing filler neck



WARNING: Flammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapors.

    → Attach warning sign in a clearly visible position.

NOTE: NOTIFICATION
Fuel system is pressurized
  • Risk of eye injuries

    → Wear personal protective gear

    → Release pressure by carefully pulling off lines and hoses

Information

Get another person to help you to remove and install the fuel tank.

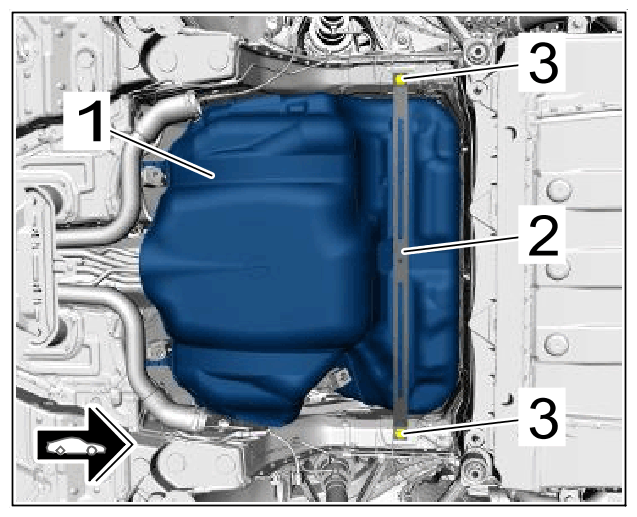

  1. Install fuel tank -1-  .
    G15507997Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank

    1. 1.1 Guide the fuel tank -1-  into installation position from below with the help of a second person and insert the clips.
    2. 1.2 Fit tensioning strap -2-  and screw in and tighten screws -3-  .

      > Tightening torque 23 Nm (17 ftlb.)

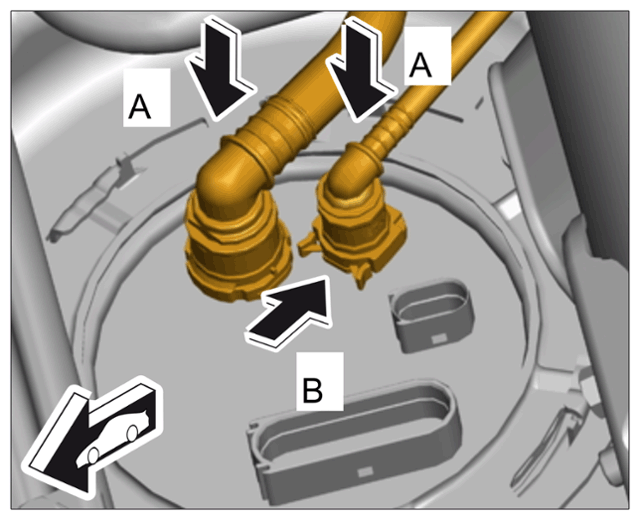

  2. Fit supply line and tank vent line in -direction of arrow A-  and check that they are seated firmly.

    If fitted: Engage lock in -direction of arrow B-  .

    G15507998Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply line and tank vent line on fuel tank flange

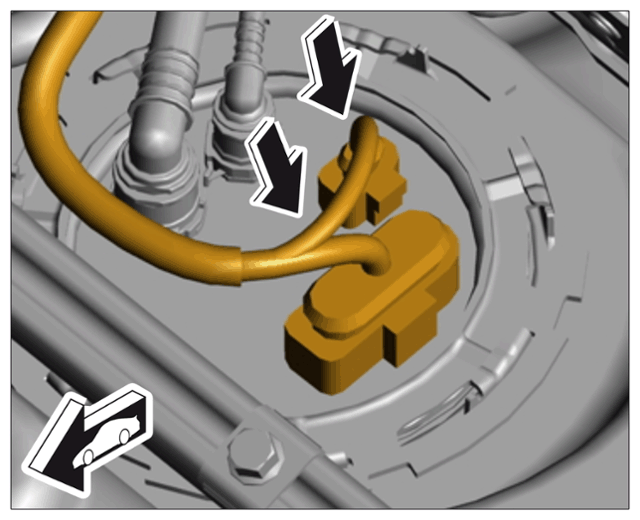

  3. Connect and lock electric plug connections for fuel level sensor in -direction of arrow-  .
    G15507999Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on fuel level sender

  4. Position filler neck.

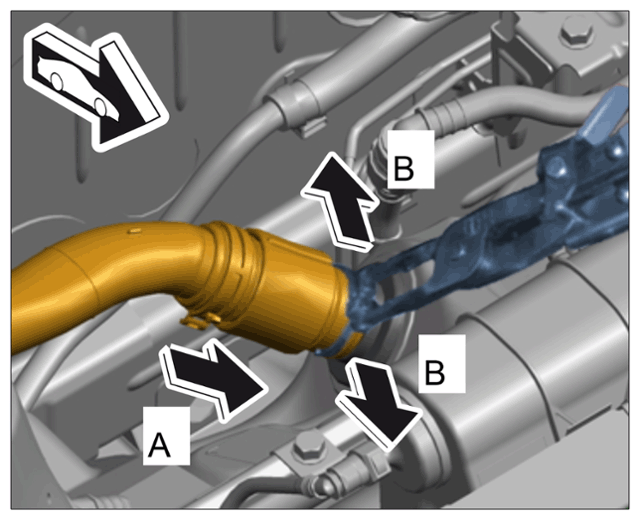

    1. 4.1 Connect filler neck and spring band clamp -direction of arrow A-  to the connection.
    G15508000Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler neck

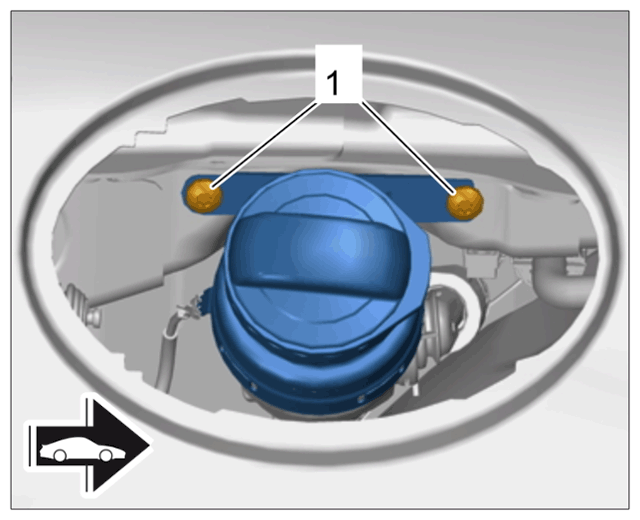

  5. Screw in and tighten filler neck screws -1-  .

    > Tightening torque 10 Nm (7.5 ftlb.)

    G15508001Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler neck holder

  6. Secure the filler neck.
    1. 6.1 Position and secure spring band clamp for filler neck using > VAS 6890 - spring band clamp pliers  (-B -  ).
    G15508002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler neck

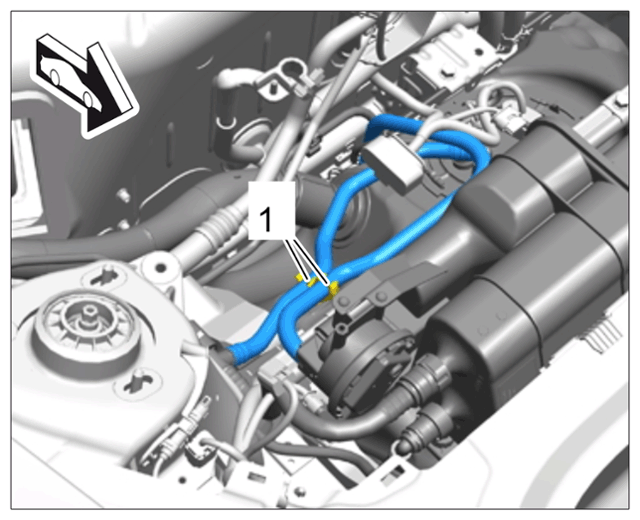

  7. Clip tank vent lines -1-  into the fuel tank.
G15508003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent lines
