Technical Values

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

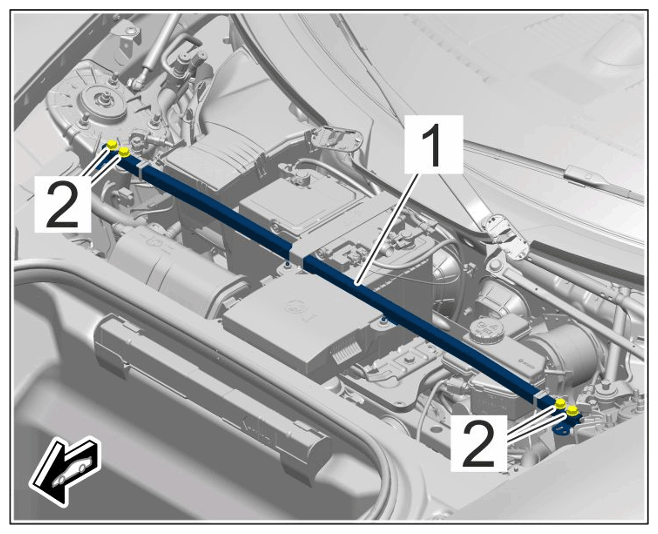

Dome strut to body	Item 2: Hexagon-head bolt, M8 x 45	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut mounting

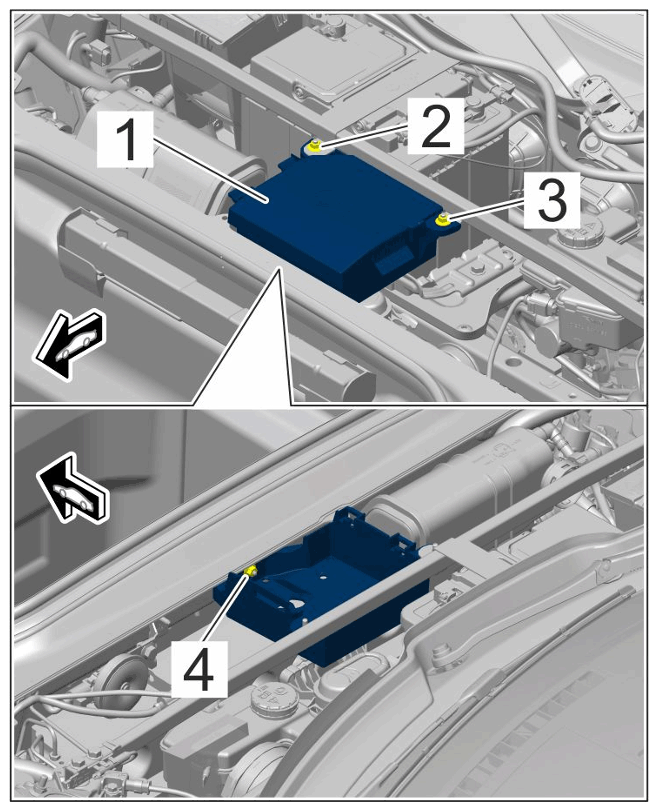

Compressor holder to dome strut	Items 2 and 3/hexagon nut, M6	Tightening torque	7 Nm (5.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for compressor holder
Compressor holder to body	Item 4/hexagon nut, M6	Tightening torque	7 Nm (5.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for compressor holder

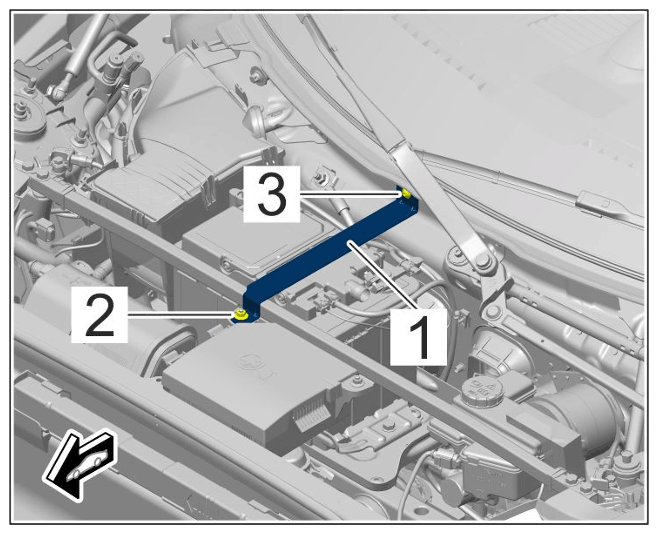

Clamp securing battery to bulkhead	Item 3/oval-head screw, M6 x 20	Tightening torque	9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for battery clamp
