Removing Strut (Dome Strut)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

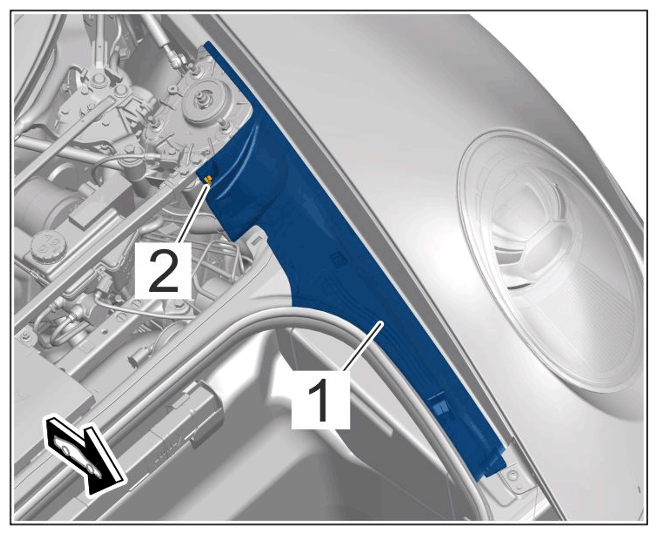

Unclip front trim panel -1- on both sides of the strut -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for front trim panel on strut

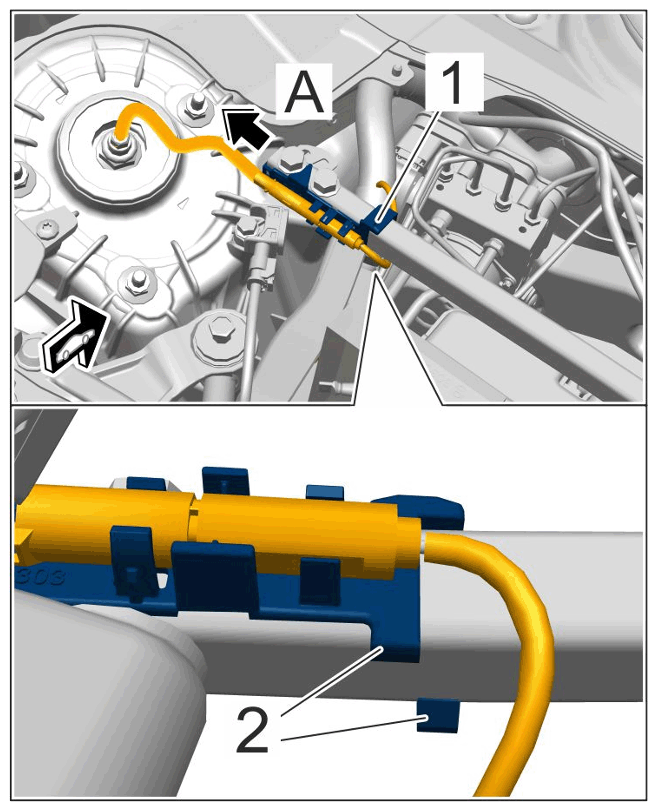

Remove holder -1- for PASM line on both sides of the vehicle from the strut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for PASM line
1. 2.1 Loosen clip connection -2- .
2. 2.2 Pull holder off the strut -arrow A- .
Remove battery clamp -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for battery clamp
1. 3.1 Screw off nut -2- .
2. 3.2 Unscrew screw -3- .

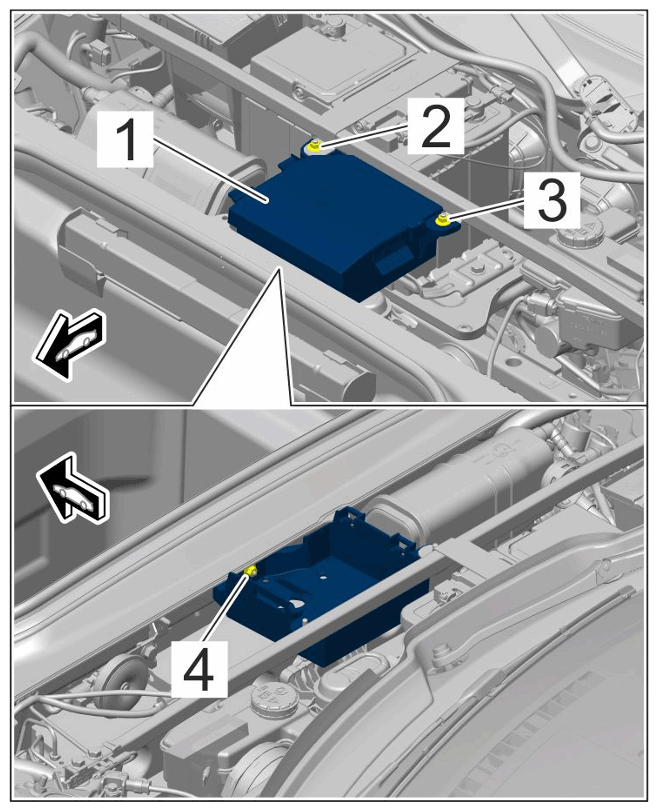

Remove compressor with holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for compressor holder
1. 4.1 Screw off nut -3- .
2. 4.2 Remove cover and remove compressor from holder.
3. 4.3 Screw off nut -4- .
4. 4.4 Remove compressor holder.

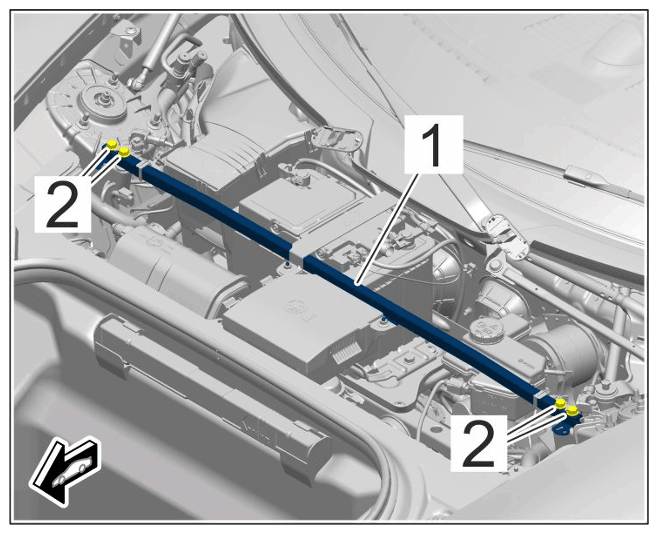

Remove strut -1- from the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut mounting
1. 5.1 Unscrew and remove screws -2- .
2. 5.2 Remove strut.
