Assembling Front Spring Strut

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

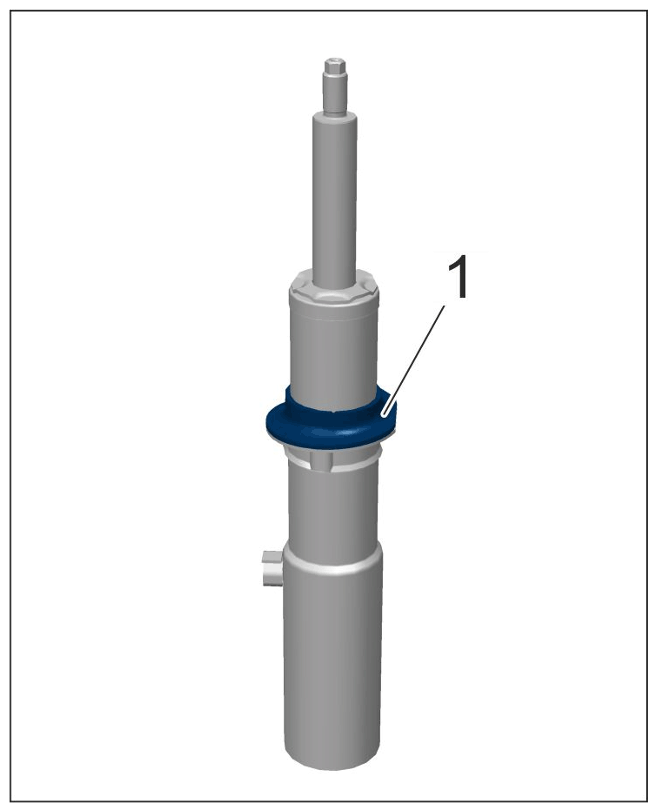

For vehicles without front axle lift system: Fit lower spring plate -1- on vibration damper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring plate, lower

Information

Always pay particular attention to the following when pressing on the actuator:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

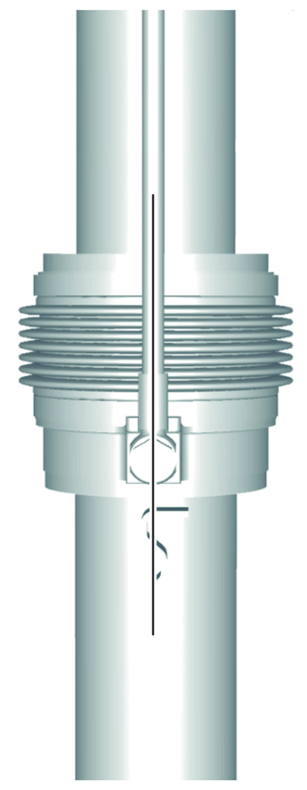

Position of actuator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

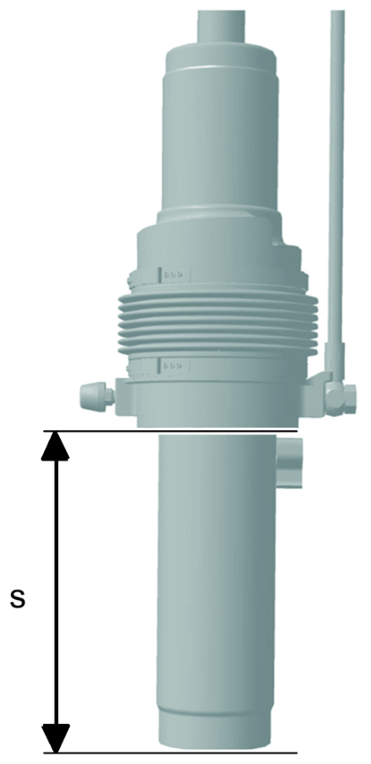

Control dimension from lower edge of vibration damper to lower edge of actuator
- Lower spring plate must not be fitted!
- Pressure line connection must be flush with the vibration damper position plate > Position of actuator .
- Press on the actuator until the control dimension -s- of 148.6 mm +/- 1 mm is reached.
Information

Do not fit the stop cap at an angle!

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

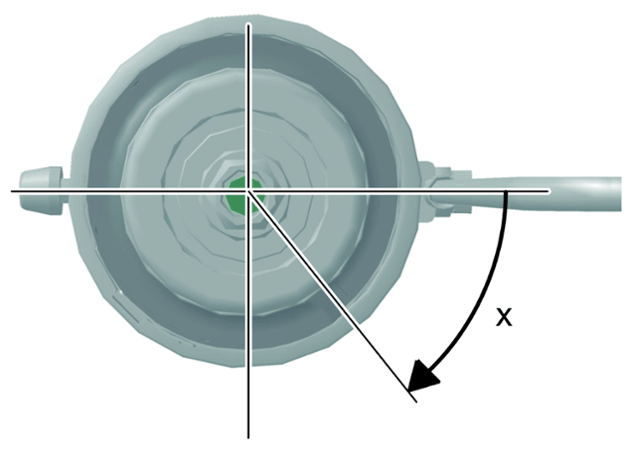

Positioning the lower spring plate
- Position lower spring plate so that the end of the coil spring is positioned clockwise at an angle -X- to the pressure line.
- Align lower spring contact bracket with the pressure line (front axle lift system) at an angle of 45°.

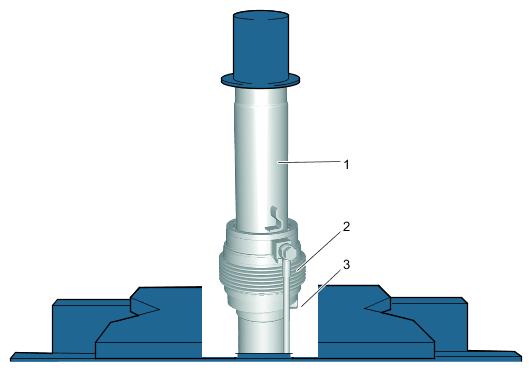

For vehicles with front axle lift system: Press actuator -2- onto the vibration damper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing on actuator

1	Vibration damper
2	Actuator
3	Pressure plates (workshop press)

2.1 Fit new stop cap -1- on the vibration damper by tapping it on gently all the way around with a hammer (plastic hammer). See note !

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

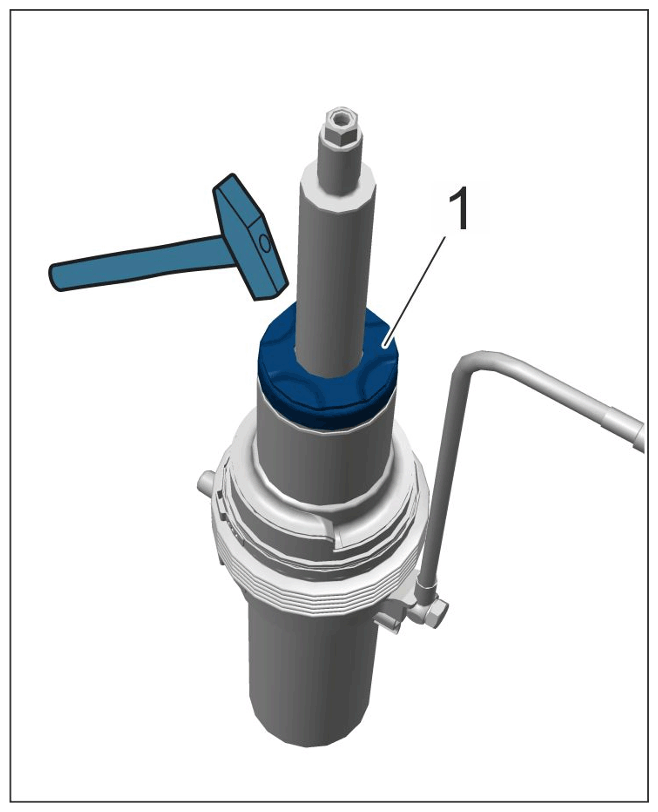

Limit-stop cap

2.2 Fit lower spring plate. See note !

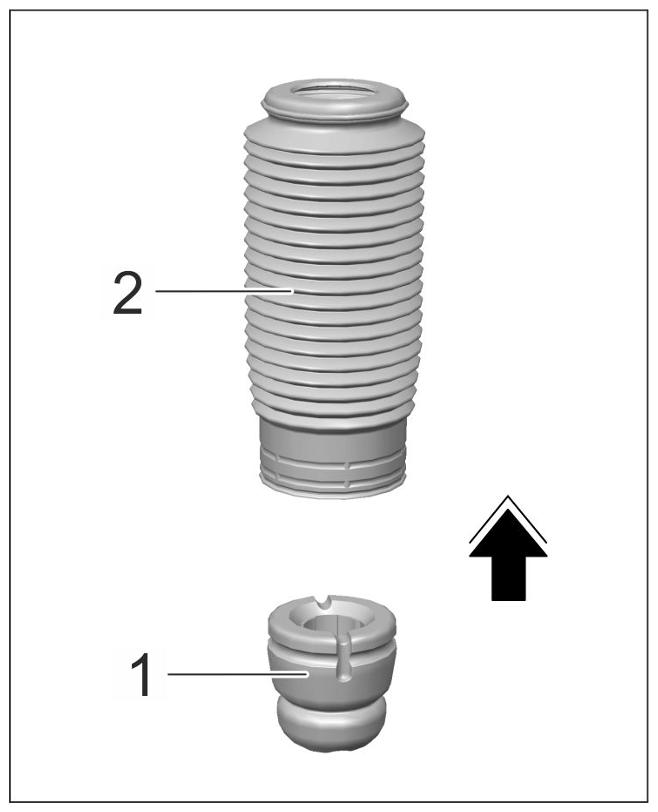

Insert rubber stop -1- as far as it will go into the bellows -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting rubber stop and bellows

Information

Explanation of the colored dots on the coil spring:
- Colored dots -1- provide information about the allocation to the vehicle variant and equipment (see Porsche Spare Parts Information!
- Colored dot -2- indicates the tolerance group to determine whether a tolerance compensation shim must be fitted.
Colored dot -2- yellow: no tolerance compensation shim should be installed.

NOTE: If the tolerance is borderline, a tolerance compensation shim can still be installed during production. Do not install a tolerance compensation shim when installing a replacement spring with a yellow dot !

Colored dot -2- blue : a tolerance compensation shim can be installed on the production side or not!
- Only when installing a replacement spring with a blue colored dot, also install a tolerance compensation shim!
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

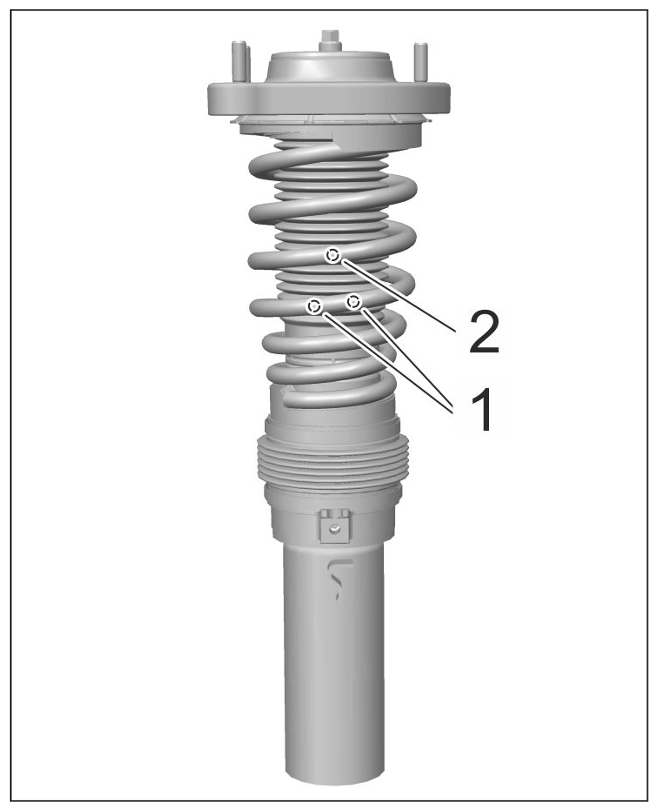

Colored dots on the coil spring
Fit all remaining components -2 to 10- on the piston rod (for instructions for installing the tolerance compensation shim -5- , see information above).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

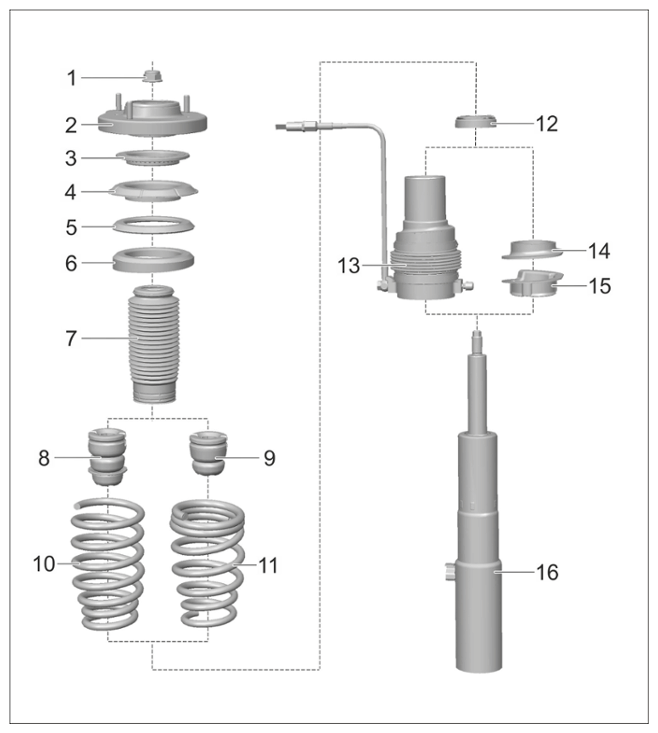

Component overview of front spring strut

Information

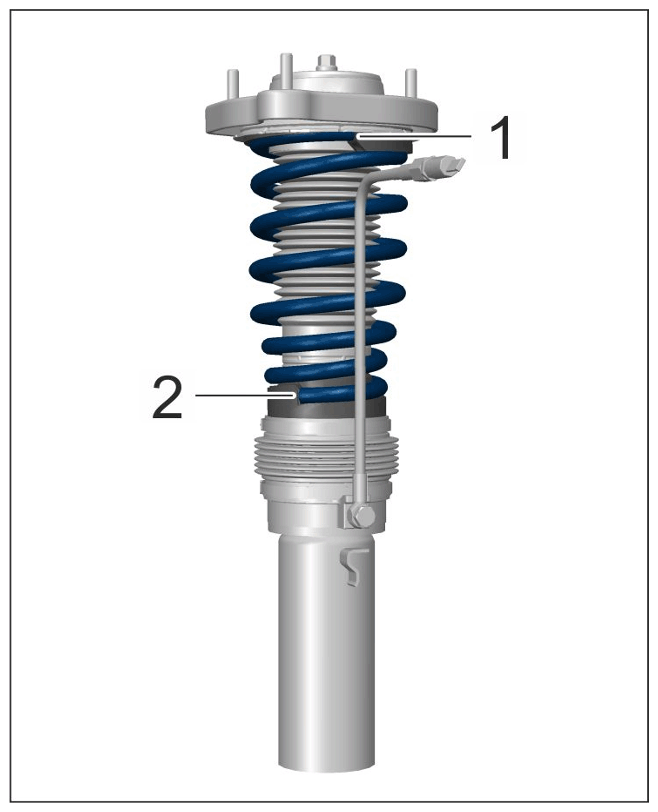

Make sure that the coil spring is positioned correctly at the upper -1- and lower spring plate -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of coil spring

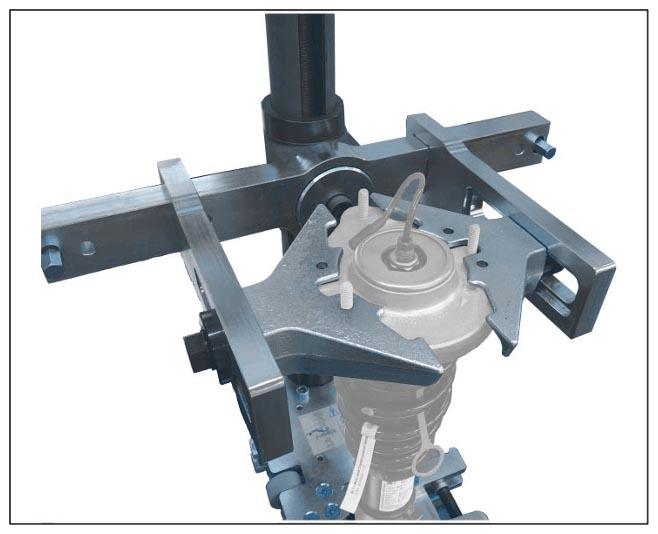

Clamp the spring strut in > VAS 6908 - stationary spring tensioning device in such a way that the mounting plates of the spring tensioning device are positioned on the spring strut supporting mount. > Front spring strut in spring tensioning device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front spring strut in spring tensioning device
WARNING:
Preloaded or pressurized components
- Risk of squashing or bruising
  - Do not reach into the danger area.
  - Relieve tension on components before starting work.
  - Secure components to prevent them from loosening suddenly.
Pre-tension the spring strut until the tension on the piston rod is relieved.
Tighten hexagon nut -1- using a commercially available open socket-wrench insert (a/f 21 mm) for example Hazet, number 2593 .
Counter at the hexagon nut -2- on the piston rod.

> Tightening torque 70 Nm (52 ftlb.)
Seal hexagon nut -1- and projecting part of the piston rod -2- with Pfinder AP14/4 corrosion protection wax.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

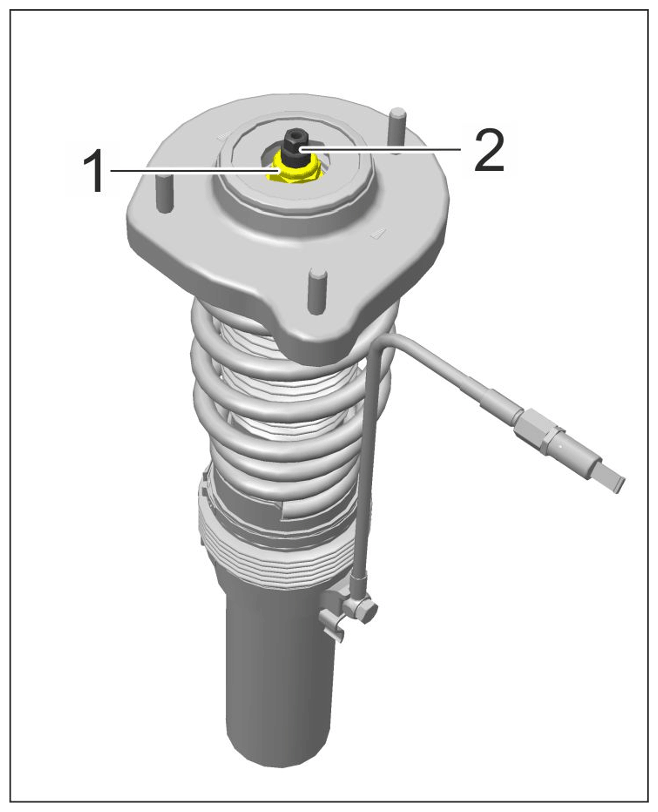

Front spring strut
Relieve tension on the spring strut; there must be no tension on the coil spring.
