Removing Connecting Link For Anti-Roll Bar: Notes

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove connecting link for anti-roll bar -1- from the anti-roll bar.
1. 1.1 Unscrew nut -2- and counter at the articulated bolt on the connecting link.
Remove connecting link for anti-roll bar -1- from the wheel bearing housing.
1. 2.1 Support wheel bearing housing using > VAS 6931 - Transmission and Engine Jack .
2. 2.2 Unscrew nut -3- and counter at the hexagon -4- on the connecting link.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

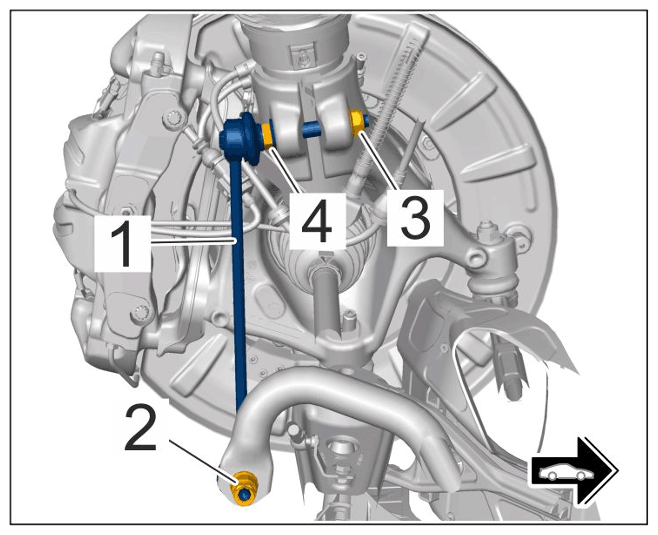

Mounting for connecting link
