Removing Anti-Roll Bar
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

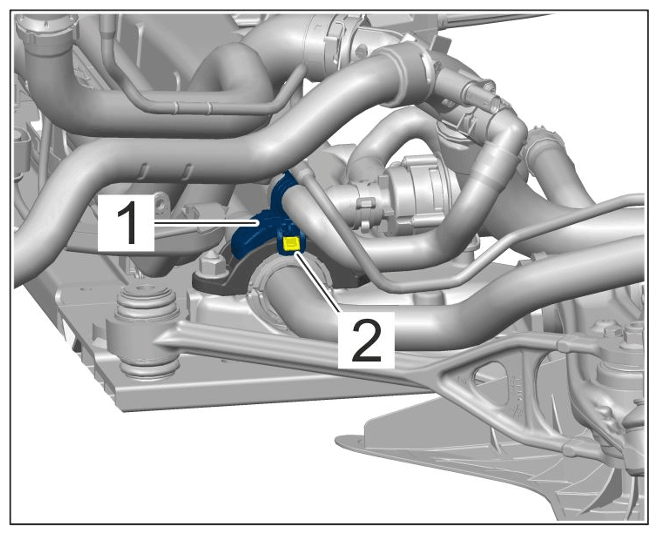

- Unclip holder for coolant lines -1-
from the anti-roll bar clamp -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant line holders

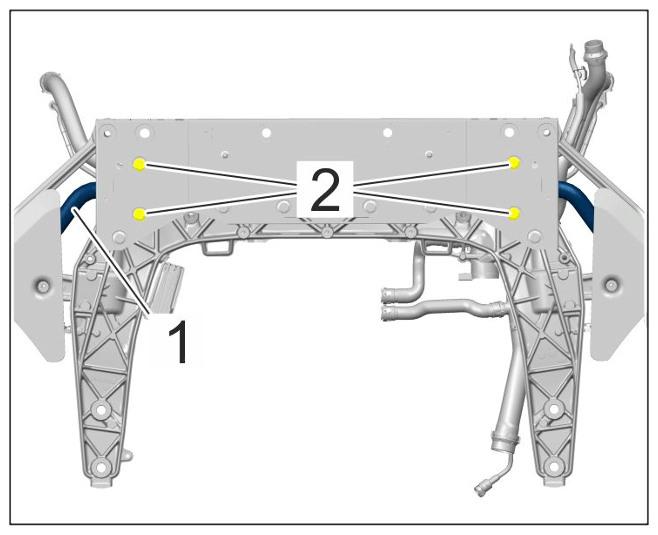

- Remove anti-roll bar -1-
from the front-axle cross member.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Securing anti-roll bar
- 2.1
Remove screws -2-
.
